Description
Harris® 65 nickel iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. Harris® 65 is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of meehanite, nickel-resistant, ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc.

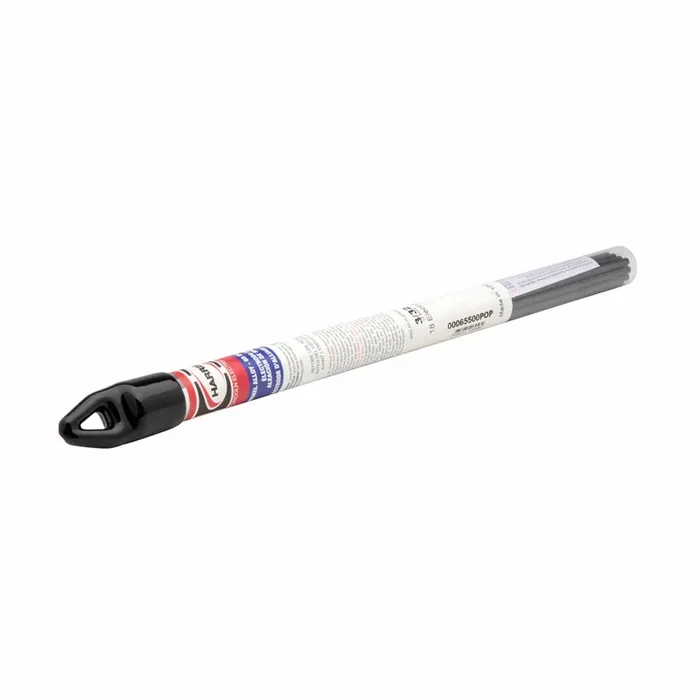

Harris® Alloy 65 nickel iron stick (SMAW) electrode 3/32 x 12 in. x 4 ea. tube/box POP
Harris® 65 nickel iron electrode is a premium nickel-iron alloy electrode (AC-DC). For gray and alloyed cast iron. Harris® 65 is for the repair of all types of cast iron. It yields dense, strong, yet totally machinable deposits. It is ideal for the repair of meehanite, nickel-resistant, ductile iron and for the joining of cast iron to steel. Typical applications embody the repair of castings, housings, gear teeth, motor, machine bases, etc.
Premium nickel-iron electrode for welding gray and alloyed cast iron
Spatter-free, high-density, ductile deposits
This premium cast alloy is ideal for repair of all types of cast iron, meehanite, nickel-resistant, ductile iron, and joining cast iron to steel
Good machinability
Close color match to nickel
First choice for ductility
First choice for thick sections, but alternate choice for thin sections
Good corrosion resistance
All position welding
Typical applications include repairs of all types of castings, housings, gear teeth, motor blocks and machine bases, etc.
Harris® Alloy 65 nickel iron Stick (SMAW) electrode 3/32 x 12 in. x 4 ea. tube/box POP
1 Year
Harris® 65
Harris
StickSMAW
Alloy Type: CastIron
Chemical Composition: Carbon 3.00-3.50%;Manganese 0.60-0.75%;Silicon 2.75-3.00%;Sulfur 0.10 % max.;Phosphorus 0.50-0.75%;Nickel 85% min.;Copper 2.5%;Aluminum 1.0;Others 1.0%
Classification: Manufactured to Harris Products Group’s internal engineering standards
Color: Good color match to cast iron
Diameter: 3/32 in (2.4 mm)
Elongation: 22% min. (mechanical properties as welded)
Material: Nickel Iron
NSF Compliant: No
RoHS Compliant: No
Size: 4 ea. tube
Tensile Strength (PSI): Up to 120,000 (mechanical properties as welded)
Typical Application: Welding gray and alloyed cast iron;Repairing all types of cast iron;Welding cast iron to steel;Repair of castings, housings, gear teeth, motors, machine bases, etc.
Yield Strength (PSI): Up to 85,000 (mechanical properties as welded)
What’s Included: Harris® Alloy 65 nickel iron Stick (SMAW) electrode 3/32 x 12 in. x 4 ea. tube/box POP
Model Name: Harris® 65
