Description

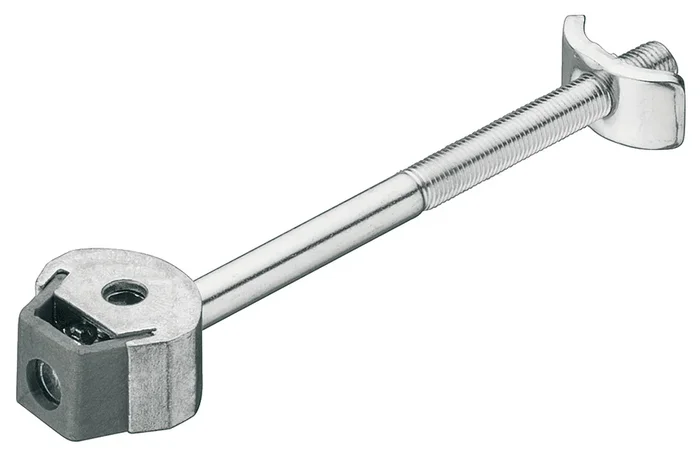

Hafele 262.96.946 Zipbolt Mini-UT Work Surface Connector
Hafele 262.96.946 Zipbolt Work Surface Connector, Mini-UT offers a reliable solution for seamlessly joining two butting or mitre cut worktop sections, particularly ideal for thin panels. Designed for 25 mm cup drilling, this connector ensures a secure and swift installation process, thanks to its rapid-action clamping mechanism.With a bolt length of 102 mm and a center-to-center measurement range of 42 to 49 mm, the Mini-UT accommodates various configurations while supporting wood thicknesses of 15 mm or more. The housing, bolt, and pressure plate are zinc plated and galvanized, providing enhanced durability and resistance to wear over time. Installation is straightforward, requiring only a 4 mm hex driver for ease of use. The components are pre-mounted, which simplifies the setup process and saves valuable time on the job site. Crafted from a combination of zinc alloy, plastic, and steel, this connector is built to last, making it a dependable choice for both building professionals and knowledgeable homeowners. When you choose the Hafele Zipbolt Work Surface Connector, you invest in quality and efficiency, ensuring your worktops are not only beautifully joined but also structurally sound.
Zipbolt Work Surface Connector, Mini-UT
For25 mm cup drilling, 10.800
Requires 4 mm hex driver
Attributes
Area of application: For two butting or mitre cut worktop sections For thin panels
Bolt length: 102.00 mm
Center to Center: 42 – 49 mm
Color/finish: Housing, bolt and pressure plate: zinc plated, Housing, bolt and pressure plate: Galvanized
Drive: Hexagon socket SW4
For wood thickness: ≥15 mm
Installation: for recess mounting in 25 mm drill hole, with rapid-action clamping
Material: Housing: zinc alloy and plastic Bolt and pressure plate: steel
Version: Bolt and pressure plate pre-mounted
Resources
- CAD data
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 11.80
