Yale JNR8805FL 625 Storeroom Mortise Lock Instructions
Yale JNR8805FL 625 Storeroom Mortise Lock is a robust, Grade 1 solution ideal for commercial applications that demand both security and durability. Featuring a sleek Jefferson Lever design and a conventional cylinder, this lock boasts a bright chromium plated finish that not only enhances its aesthetic appeal but also ensures long-lasting performance. Designed for ease of installation, the Yale 8800 Series Mortise Lock allows for quick lever handing and a field-reversible latchbolt, accommodating various door configurations effortlessly. Its reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim provide an extra layer of security, making it an excellent choice for storerooms and exit doors. Certified by ANSI/BHMA A156.13, Series 1000 for operational Grade 1, this lock guarantees reliability under demanding conditions. It is also UL/cUL fire rated for up to three hours, ensuring compliance with fire safety standards. The lock is suitable for doors ranging from 1-3/4″ to 3-1/4″ thick, and comes with a 10-year mechanical warranty for added peace of mind. With its versatile features, including a 3/4″ stainless steel throw and multiple finish options, the Yale JNR8805FL is the perfect choice for professionals seeking a dependable and stylish locking solution.
Storeroom Mortise Lock

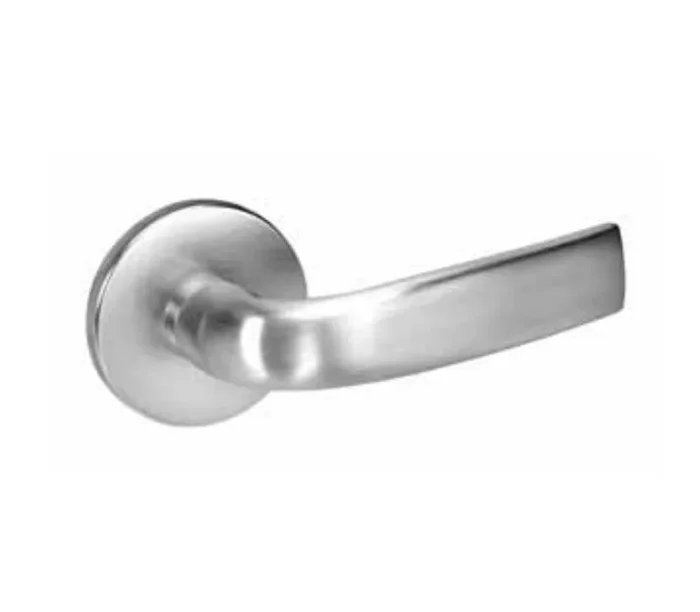

Grade 1 Storeroom Mortise Lock, Jefferson Lever, CO Rose, Conventional Cylinder, Bright Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Ansi Function: F07 – Storeroom/Exit
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Storeroom or Closet Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: JN – Jefferson Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pins: 6
Roseescutcheon Design: CO Rose
Series: Yale 8800 Series Mortise Locks
Std Keyway: Para
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
