Description
Yale CRR8823FL 626 Storeroom Mortise Lock with Deadbolt
Yale CRR8823FL 626 Storeroom Mortise Lock w/Dbolt offers unparalleled security and durability, making it an ideal choice for various commercial applications. This Grade 1 storeroom lock features a robust design without inside trim, ensuring maximum protection. The lock is equipped with a Carmel lever and a CO rose, all finished in a sleek satin chromium plating that enhances both aesthetics and resilience. Installation is straightforward, thanks to its quick lever handing, field-reversible latchbolt, and standard nonhanded strike. The reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim further bolster security, backed by ANSI/BHMA Grade 1 certification, ensuring long-lasting performance. The Yale 8800 Series Mortise Lock is compatible with standard doors of 1-3/4″ thickness and can accommodate doors up to 3-1/4″ thick upon request. With a 3/4″ stainless steel throw latchbolt and a 2-3/4″ backset, this lock is designed for optimal functionality. Its UL/cUL fire rating of up to 3 hours and windstorm certification (per local codes) make it a reliable choice for various environments. With a limited 10-year mechanical warranty and available in 17 finishes, the Yale CRR8823FL ensures both style and security for your commercial needs.
Storeoom Mortise Lock w/Dbolt

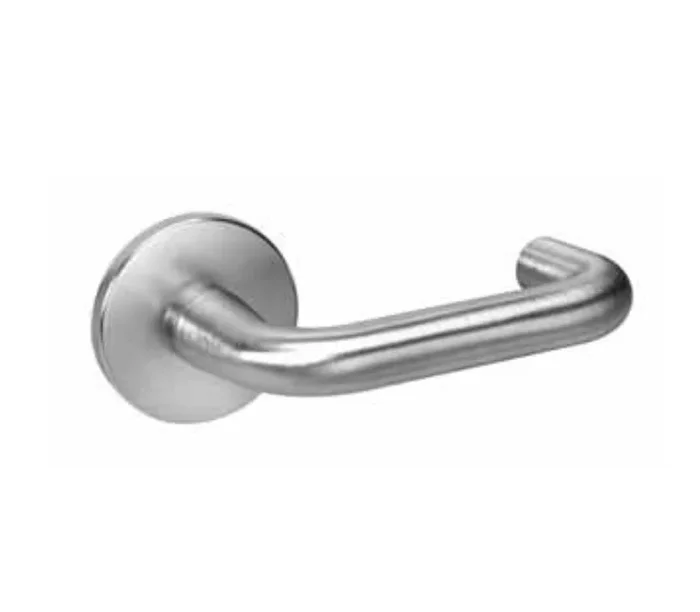

Grade 1 Storeroom Lock, No Inside Trim Mortise Lock, Carmel Lever, CO Rose, Less Cylinder, Satin Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 23-Storeroom Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: CR – Carmel Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pins: 6
Roseescutcheon Design: CO Rose
Series: Yale 8800 Series Mortise Locks
Std Keyway: Para
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
