Description

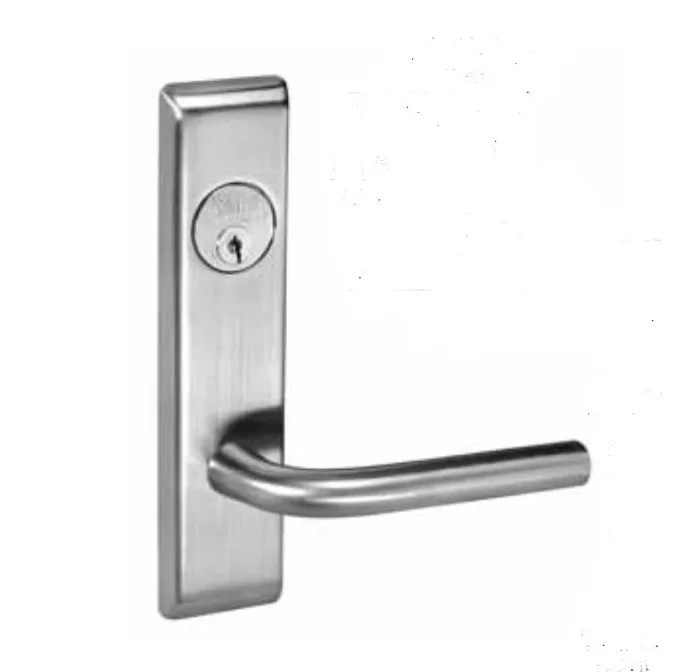

Yale PNCN8801FL 626 Passage Mortise Lock
Yale PNCN8801FL 626 Passage Mortise Lock offers an exceptional blend of security and functionality, making it an ideal choice for commercial applications. This Grade 1 passage or closet mortise lock features the elegant Pinehurst lever and a CN escutcheon, all showcased in a sleek satin chromium plated finish. Designed for easy installation, the lock includes quick lever handing and a field-reversible latchbolt, simplifying setup for any door. The Yale 8800 Series Mortise Lock is built to last, featuring a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, ensuring durability and peace of mind. Certified to ANSI/BHMA A156.13, Series 1000, Operational Grade 1, it is also UL/cUL fire rated for up to 3 hours, making it a reliable choice for safety-conscious properties. This mortise lock is suitable for standard door thicknesses of 1-3/4″ but can accommodate doors up to 3-1/4″ thick upon request. With a stainless steel 3/4″ throw latchbolt and a 10-year mechanical warranty, the Yale PNCN8801FL stands out as a robust locking solution that combines style with advanced security features. Available in 17 finishes, it can seamlessly integrate into any architectural design.
Passage Mortise Lock
Grade 1 Passage or Closet Mortise Lock, Pinehurst Lever, CN Escutcheon, Satin Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Ansi Function: F01 – Passage
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Design A: PN Lever
Design B: CN Escutcheon
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 01-Passage or Closet Latch
Grade: Grade 1
Installation: Commercial
Leverknob Design: PN – Pinehurst Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Pack Qty: 1
Roseescutcheon Design: CN Escutcheon
Series: Yale 8800 Series Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
