Yale MO5430LN 693 Institutional Lockset

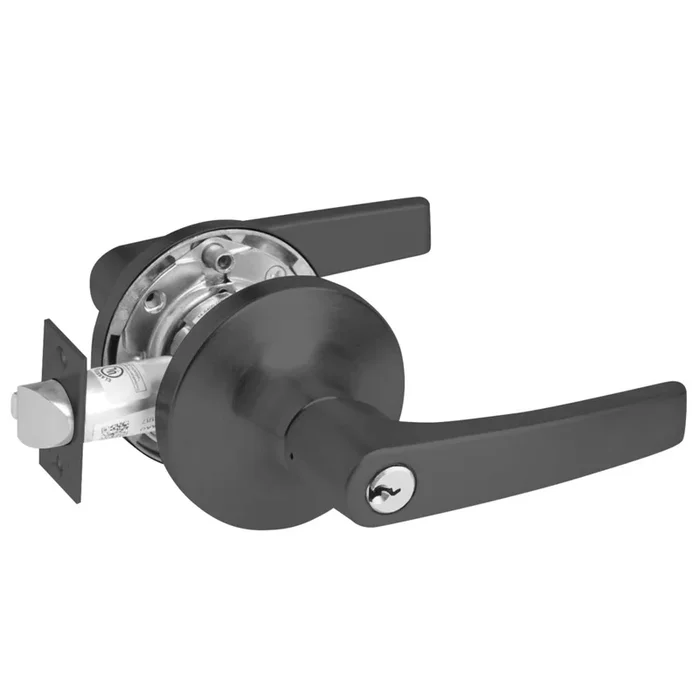

Yale MO5430LN 693 Institutional Lockset is a Grade 1 utility lock designed for industrial, commercial, and institutional applications. This heavy-duty cylindrical lockset combines rugged reliability with outstanding performance, making it a preferred choice among architects and building owners. The Free Wheeling lever mechanism enhances vandal resistance while minimizing maintenance needs, a crucial feature for high-traffic environments. Crafted with a stainless steel latchbolt for added strength, the lock offers a standard 1/2″ throw, with an option for a 3/4″ throw suitable for fire-rated doors. Its wear-resistant chassis plates ensure a longer lifespan and smoother operation. The lockset includes three non-handed lever options-Augusta, Monroe, and Pacific Beach-that comply with ADA requirements for ease of use. The Yale MO5430LN features a patented door adjustable rose support plate, accommodating door thicknesses from 1-3/4″ to 2″. With 24 function options, including electrified variants, this lockset provides extensive versatility. Available in a sleek black painted finish, it complements various architectural styles. Backed by a 7-year limited warranty, this lockset exemplifies Yale’s commitment to quality and durability in door hardware solutions.
Institutional Lockset
Grade 1 Utility/Asylum/Institutional Cylindrical Lock, Monroe Lever, Conventional Cylinder, Black Painted Finish, Non-handed
Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it’s the favorite among architects and building owners who demand the highest standard of product quality.
Designed for industrial, commercial, and institutional settings.
Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.
• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.
• 13 finish options.
• 3 lever designs.
• 24 functions including electrified.
• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2″ throw is standard.
• A 3/4″ latch throw for fire-rated or pairs of doors is available.
• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.
• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.
• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.
• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4″ to 2″. Rose spacers available for 1-3/8″ thick doors.
• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
• Expanded cylinder and keying options: – Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. – Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. – Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.
• 3-1/2″ roses cover ANSI/BHMA hollow metal door cutout.
Attributes
Ansi: F87
Ansi Function: F87 – Asylum
Base Material: Steel
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4″
Box Width Fraction: 7-1/2″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 693
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 30-Utility, Asylum or Institutional Lock
Function Family: Institutional
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO – Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Utility/Asylum/Institutional
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Of Keys: 2
Origin: United States
Pack Height: 4″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5″
Pins: 6
Product Height: 4″
Product Length: 10″
Product Width: 7.5″
Projection: 3-1/8″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 5400LN Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
