Yale Grade 1 Storeroom Lockset – Durable Security Solution

Description

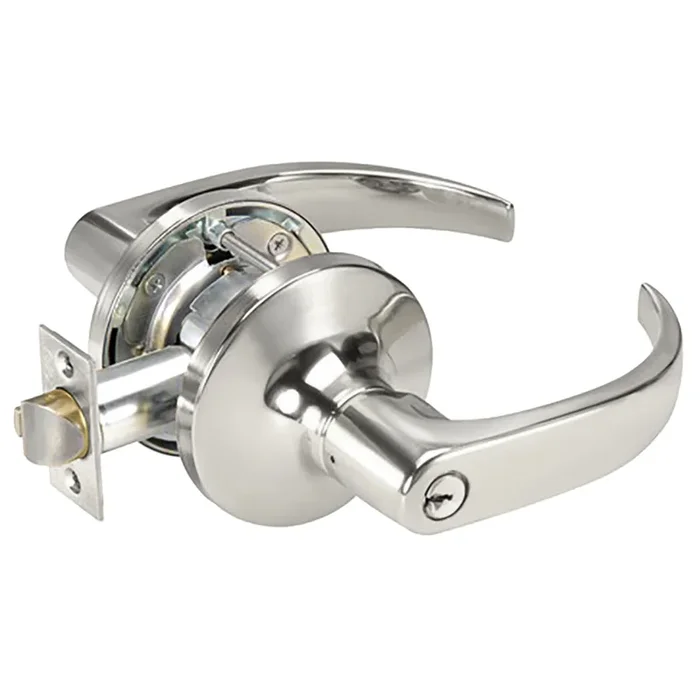

Yale PB5405LN 625 Grade 1 Storeroom Lockset

Yale PB5405LN 625 Grade 1 Storeroom Lockset combines durability and modern design for industrial, commercial, and institutional applications. This Grade 1 cylindrical lockset features a Pacific Beach lever and a conventional cylinder, ensuring high performance without compromise. Its bright chrome finish not only enhances aesthetics but also provides a resilient surface against wear. Designed with a Free Wheeling lever mechanism, the lockset offers increased vandal resistance and reduced maintenance needs compared to traditional rigid levers. The stainless steel latchbolt delivers superior strength, while wear-resistant chassis plates ensure smoother operation and a longer lifespan. With a direct 1/2″ throw standard and an optional 3/4″ latch throw for fire-rated doors, this lockset is adaptable to various security needs. The Yale PB5405LN is non-handed and features three lever options that comply with ADA standards for easy operation. It also includes a range of cylinder and keying options, including Yale® KeyMark® protected keyway cylinders. With a robust construction, this lockset meets ANSI/BHMA requirements and is UL listed for added peace of mind. Elevate your security with the reliability of Yale’s storeroom lockset, backed by a 7-year limited warranty.

Grade 1 Storeroom Lockset

Grade 1 Storeroom/Closet Cylindrical Lock, Pacific Beach Lever, Conventional Cylinder, Bright Chrome Finish, Non-handed

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it’s the favorite among architects and building owners who demand the highest standard of product quality.

Designed for industrial, commercial, and institutional settings.

Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.

• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.

• 13 finish options.

• 3 lever designs.

• 24 functions including electrified.

• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2″ throw is standard.

• A 3/4″ latch throw for fire-rated or pairs of doors is available.

• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.

• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.

• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.

• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4″ to 2″. Rose spacers available for 1-3/8″ thick doors.

• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

• Expanded cylinder and keying options: – Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. – Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. – Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.

• 3-1/2″ roses cover ANSI/BHMA hollow metal door cutout.

Attributes

Ansi: F86

Ansi Function: F86 – Storeroom

Base Material: Brass, Bronze

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 10″

Box Height Fraction: 4″

Box Width Fraction: 7-1/2″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: United States

Cylinder Type: Conventional Cylinder

Cylinders Present: Single Cylinder

Door Thickness: 1-3/4″ to 2″

Finish: 625/US26

Finish Family: Polished Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 05-Storeroom or Closet Lock

Function Family: Storeroom

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Keys: Cut

Latch Bore Diameter: 1″

Lever Knob: Lever

Lever Knob Design Name: Pacific Beach

Leverknob Design: PB – Pacific Beach Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 7 Year Warranty

Lock Face Size: 1-1/8″ x 2-1/4″

Manufacturer Function: Storeroom/Closet

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/4″

Of Keys: 2

Origin: United States

Pack Height: 4″

Pack Length: 10″

Pack Qty: 1

Pack Volume: 300 in³

Pack Width: 7.5″

Pins: 6

Product Height: 4″

Product Length: 10″

Product Width: 7.5″

Projection: 3-1/8″

Rose Escutcheon: Rose

Roseescutcheon Design: 3-1/2″ Rose Diameter

Roseescutcheon Dimensions: 3-1/2″

Screws: Wood/Machine Screws

Series: 5400LN Grade 1 Cylindrical Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 694

Std Latch Type: Beveled Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 497

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike Dimensions: 1-1/4″ x 4-7/8″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Resources

• 5400LN Grade 1 Cylindrical Lever Locks Cut Sheet
• 5400LN Series Grade 1 Cylindrical Lever Locks Catalog
• 5400LN Series Grade 1 Cylindrical Lever Lockset Installation Instructions
• Electrified Wiring and Request to Exit (REX) Instructions 5490LN/5491LN
• Replacing Push Button on a Yale 5400 Series Cylindrical Lock
