Yale MOCN8822FL 626 Dormitory Exit Mortise Deadbolt Instructions
Yale MOCN8822FL 626 Dormitory/Exit Mortise Dbolt stands out as a Grade 1 Mortise Lock, expertly crafted for both durability and security in commercial settings. Featuring the elegant Monroe Lever and a conventional cylinder, this lock is finished in a sleek satin chromium plating, ensuring it not only performs well but also complements any door aesthetic. The Yale 8800 Series Mortise Lock is designed with user-friendly installation in mind, showcasing quick lever handing and a field-reversible latchbolt. With a robust stainless steel deadbolt and heavy-duty, vandal-resistant trim, it meets the ANSI/BHMA Grade 1 certification for exceptional longevity. This lock is UL/cUL fire-rated for up to 3 hours, providing peace of mind in emergency situations. Key specifications include a 3/4″ stainless steel throw latchbolt, accommodating standard door thicknesses from 1-3/4″ to 3-1/4″. The lock is equipped with a brass, 6-pin, keyed-random cylinder, and comes with two keys. Additionally, it offers a variety of finishes-17 in total-allowing customization to match your specific needs. Backed by a 10-year mechanical warranty, the Yale MOCN8822FL is a trustworthy choice for dormitory or exit applications, ensuring safety without compromising on style.
Dormitory/Exit Mortise Dbolt

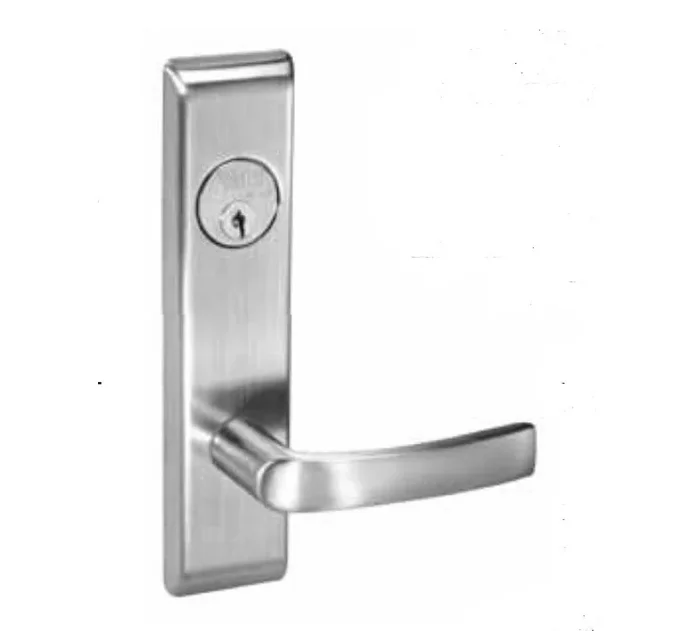

Grade 1 Dormitory or Exit Mortise Lock, Monroe Lever, CN Escutcheon, Conventional Cylinder, Satin Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Ansi Function: F13 – Dormitory
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Design A: MO Lever
Design B: CN Escutcheon
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 22-Dormitory or Exit Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: MO – Monroe Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pins: 6
Roseescutcheon Design: CN Escutcheon
Series: Yale 8800 Series Mortise Locks
Std Keyway: Para
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
