Yale Classroom Mortise Lock – Reliable Security for Educational Facilities

Description

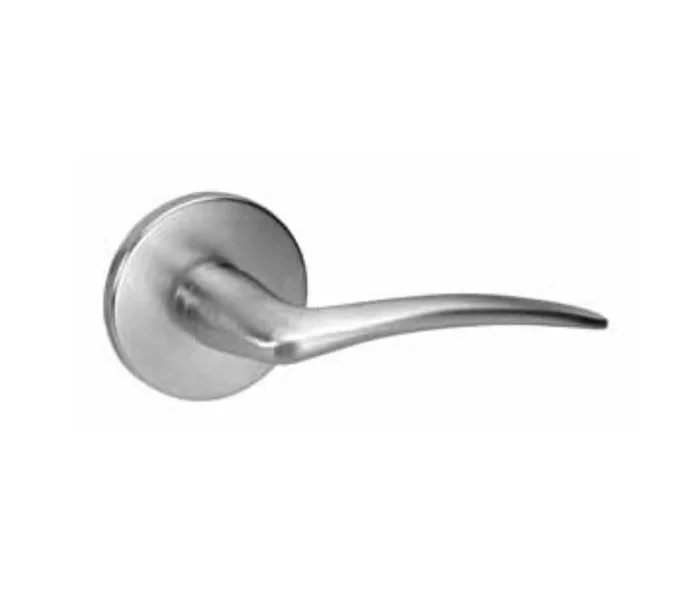

Yale ARR8808FL 625 LH Classroom Mortise Lock

Yale ARR8808FL 625 LH Classroom Mortise Lock combines exceptional security with user-friendly features, making it an ideal choice for various commercial applications. This Grade 1 mortise lock is equipped with an Arcadia lever and a conventional cylinder, ensuring both functionality and style. Its bright chromium-plated finish not only enhances aesthetic appeal but also improves durability against wear. Designed for ease of installation, the Yale 8800 Series features quick lever handing, a field-reversible latchbolt, and a standard nonhanded strike, allowing for seamless integration into existing door setups. The lock’s reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim provide a robust defense against unauthorized access. Certified to ANSI/BHMA Grade 1, this lock promises long-lasting performance. The Yale ARR8808FL is fire-rated for up to three hours and accommodates door thicknesses ranging from 1-3/4″ to 3-1/4″. It also includes a 6-pin brass cylinder and comes with two keys, ensuring immediate usability. With a limited 10-year mechanical warranty, you can trust in its reliability and durability, making it an excellent investment for your security needs.

Classroom Mortise Lock

Grade 1 Classroom Mortise Lock, Arcadia Lever, CO Rose, Conventional Cylinder, Bright Chromium Plated Finish, Left-Handed

Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.

The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

• ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL:UL/cUL fire rated up to 3 hours
• Windstorm:Certified (refer to local codes)
• Mechanism:Stainless steel
• Backset:2-3/4″
• Latchbolt:3/4″ stainless steel throw
• Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
• Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
• Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility:Field reversible handing
• Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
• Finishes:Available in 17 finishes
• Warranty:10 year mechanical

Attributes

Ansi: F05

Ansi Function: F05 – Classroom

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Length: 1-1/8″

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Finish: 625/US26

Finish Family: Polished Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 08-Classroom Lock

Grade: Grade 1

Handing: Left-Handed

Installation: Commercial

Leverknob Design: AR – Arcadia Lever

Limited Warranty: 10 Years

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Pack Qty: 1

Pins: 6

Roseescutcheon Design: CO Rose

Series: Yale 8800 Series Mortise Locks

Ship Weight: 6 lbs.

Std Keyway: Para

Std Latch Backset Dim: 2-3/4″

Std Strike Height: 4-7/8″

Std Strike Number: 2815

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• 2023 Yale Commercial Price Book (effective 4.17.2023)
• 8800 Series Handing Instructions
• 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
• 8800 Series Mortise Lock Installation Instructions
• 8800 Series Parts Manual
• 8800 Series Upgrade Solutions Sell Sheet
• 8800-ITS Mortise Lockset Installation Instructions
• Yale 8800 Series Mortise Lock Catalog
• Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
• Yale 8800 Series Mortise Locks Cut Sheet
• Yale Commercial Finishes Chart
• Yale Competitor Indicator Kits Catalog
• Yale Reflections Catalog
