Description

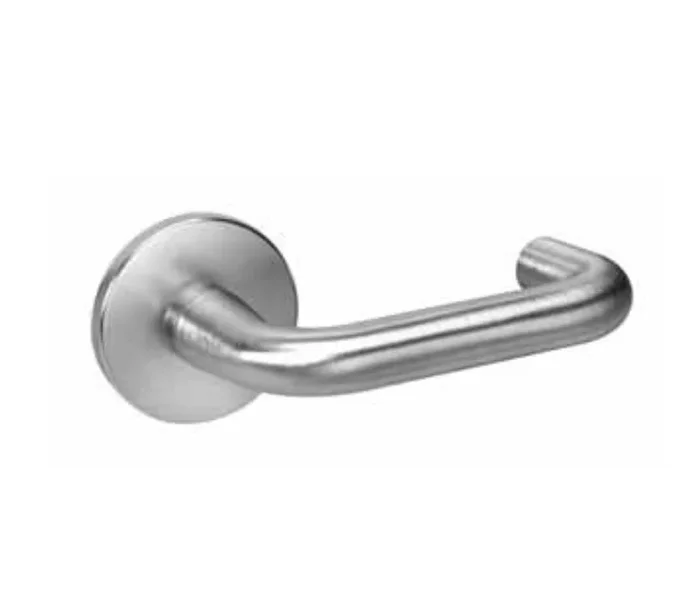

Yale CRR8864FL 626 Bathroom Mortise Lock Guide
Yale CRR8864FL 626 Bathroom Mortise Lock combines robust security with convenience, making it an ideal choice for commercial restroom applications. This Grade 1 mortise lock features a Carmel lever and a CO rose, ensuring a stylish yet functional design. Its satin chromium plated finish not only enhances its aesthetic appeal but also provides durability against wear and tear. Engineered for strength, the lock includes a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, earning an ANSI/BHMA Grade 1 certification for long-lasting performance. The lock is UL/cUL fire rated for up to 3 hours, adding an extra layer of safety. Installation is streamlined with quick lever handing, a field-reversible latchbolt, and a standard nonhanded strike, accommodating doors from 1-3/4″ up to 3-1/4″ thick. Other features include a 3/4″ stainless steel throw latchbolt and a 6-pin conventional cylinder, supplied with two keys. The lock’s versatility is highlighted by its availability in 17 finishes, ensuring it fits various design preferences. Backed by a 10-year mechanical warranty, the Yale CRR8864FL is a reliable solution for maintaining security and accessibility in commercial spaces.
Bathroom Mortise Lock
Grade 1 Restroom with Occupancy Indicator Mortise Lock, Carmel Lever, CO Rose, Conventional Cylinder, Satin Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 64-Bathroom Lock w/Indicator
Grade: Grade 1
Installation: Commercial
Leverknob Design: CR – Carmel Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pins: 6
Roseescutcheon Design: CO Rose
Series: Yale 8800 Series Mortise Locks
Std Keyway: Para
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
