Wide Stile Surface Vertical Rod (SVR), TRO – Detex Corporation Value Series Exit Device

Description

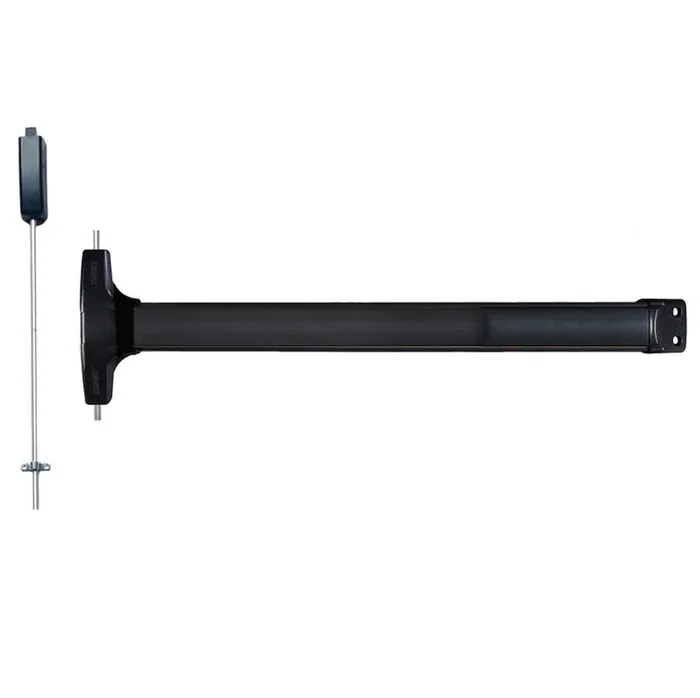

Detex V51-LD-711-36 Wide Stile Surface Vertical Rod Exit Device, TRO, 36in, Anodized Aluminum Black

Detex Corporation V51-LD-711-36 Wide Stile Surface Vertical Rod (SVR) is a robust exit device tailored for panic and fire safety on double doors without a mullion. Designed with a patented mounting plate and strike locator system, this device ensures a straightforward and precise installation, making it an economical choice for loss prevention needs. Crafted from high-quality materials, the V51 features a durable stainless steel deadlocking Pullman-type latch bolt and an impact-resistant ABS exterior, all finished in sleek anodized aluminum black. Its 36-inch width fits standard doors, while the field-reversible handing allows for versatile installation options. The angled end cap is engineered to deflect damage, enhancing the device’s longevity. This exit device is designed for ease of use, with minimal door preparation required and fast installation that saves both time and resources. The modular design accommodates various outside trims, allowing customization to meet specific aesthetic needs. Certified to meet A156.3, ADA, ANSI, BHMA, and UL standards, the V51-LD-711-36 is an ideal solution for professionals seeking reliable, attractive, and effective exit hardware for high-traffic areas.

Wide Stile Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Device, Value Series No Trim, Less Dogging, 36in, 711/DC35 Anodized Aluminum Black

Notice: The info below is not item specific.

The V50 Series, surface vertical rod exit device and V51 Series, top rod exit device are heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fits almost any door in any décor

Features:

• Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
• Bottom drop bolt, 5/8″ dia. x 5-5/8″ long secures into strike plate
• Handed, field reversible
• Field sizeable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• F – 3-Hour Fire Rated
• H – Hurricane Rated
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• For Narrow Stile that fits 2″ Narrow stile glass door see V50xNS/V51xNS
• 84 – Fits 7’ Door Height (Std.)
• 96 – Fits 8’ Door Height
• 120 – Fits 10’ Door Height
• RC – Rod Covers (630 Brushed Stainless)
• BG – Bottom bolt and 12″ ADA ramped cover (630 Brushed Stainless)
• 96 Surface top strike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 – Concealed mortise mount power transfer
• EH8 – Five-knuckle energy transfer hinge – 8 wires

Electrical Options:

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Delayed Egress (EE)

Accessories:

• SN1 – Sex Nut Fasteners
• GB# – Glass Bead Kits
• Outside Trim (see Value Series Trim Options)
• NSK – Narrow Kit for 2″ narrow stile glass door applications

Technical Information:

• Door Stile – Fits 3-1/2″ stile doors (Std.)
• Door Stile – Fits 2″ narrow stile doors – specify NS
• Fasteners – Machine and Self- Drilling Screws standard

Attributes

Alternate Codes: V51-LD-711-36, V51LD71136

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 36″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Hollow Metal, Wide Stile, Wood

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 711

Finish Color: Flat Black

Function: Exit Only

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Value Series V50

Strike Type: Surface Non-Roller Strike

Weatherproof: No
