Wide Stile Surface Vertical Rod Exit Device – Value Series No Trim – Detex Corporation

Description

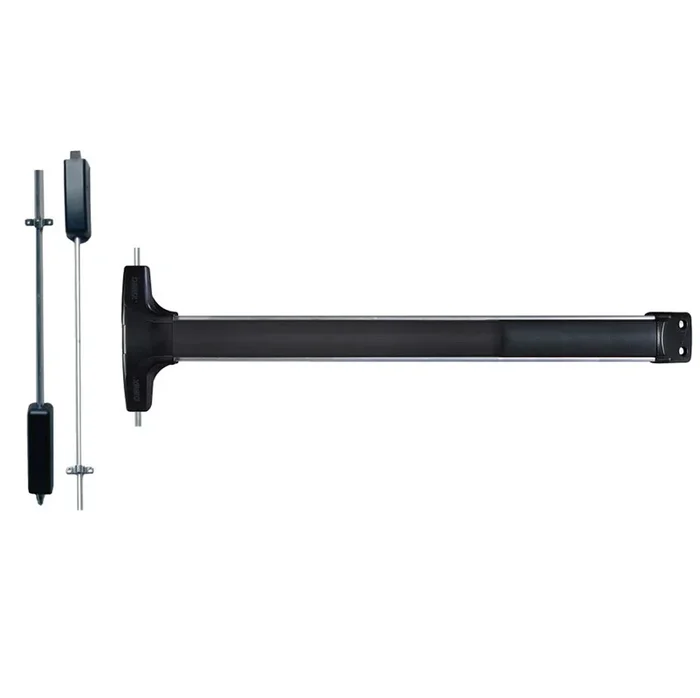

Detex V50-LD-628-48 Wide Stile SVR Exit Device, Value Series, 48in, Satin Aluminum, No Trim

Detex Corporation V50-LD-628-48 Wide Stile Surface Vertical Rod Exit Device is a heavy-duty option designed for panic and fire exit applications on double doors without a mullion. This durable device is part of the Value Series, offering an economical and effective solution for loss prevention. The V50-LD features a patented mounting plate and strike locator system, eliminating the need for paper templates and saving valuable installation time. Its minimal door preparation requirements reduce labor costs while ensuring a fast and easy setup. An angled end cap deflects damage away from the device, enhancing its longevity. The stainless steel, 3/4″ deadlocking Pullman-type latch bolt and a 5/8″ diameter bottom drop bolt provide reliable security. Designed to fit various door types, including aluminum and wood, the V50-LD can accommodate standard and narrow stile doors. The modular design allows for the integration of different outside trims, and trims can be easily changed or rekeyed without removing the device from the door. With a satin aluminum finish and a width of 48 inches, this exit device meets multiple certifications, including A156.3, ADA, and UL Listed. The V50-LD is an excellent choice for building professionals and knowledgeable homeowners seeking robust security solutions.

Wide Stile Surface Vertical Rod (SVR) Exit Device, Value Series No Trim, Less Dogging, 48in, 628/US28 Satin Aluminum

Notice: The info below is not item specific.

The V50 Series, surface vertical rod exit device and V51 Series, top rod exit device are heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits:

• Priced to be the best value for durable and attractive loss prevention panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Angled end cap deflects damage away from device
• Outside trims are easily changed or rekeyed without removing device from door
• Fits almost any door in any décor

Features:

• Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
• Bottom drop bolt, 5/8″ dia. x 5-5/8″ long secures into strike plate
• Handed, field reversible
• Field sizeable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• F – 3-Hour Fire Rated
• H – Hurricane Rated
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• For Narrow Stile that fits 2″ Narrow stile glass door see V50xNS/V51xNS
• 84 – Fits 7’ Door Height (Std.)
• 96 – Fits 8’ Door Height
• 120 – Fits 10’ Door Height
• RC – Rod Covers (630 Brushed Stainless)
• BG – Bottom bolt and 12″ ADA ramped cover (630 Brushed Stainless)
• 96 Surface top strike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 – Concealed mortise mount power transfer
• EH8 – Five-knuckle energy transfer hinge – 8 wires

Electrical Options:

• Exit Alarm (EA)
• Exit Alarm with 9 volt Battery (EB)
• Delayed Egress (EE)

Accessories:

• SN1 – Sex Nut Fasteners
• GB# – Glass Bead Kits
• Outside Trim (see Value Series Trim Options)
• NSK – Narrow Kit for 2″ narrow stile glass door applications

Technical Information:

• Door Stile – Fits 3-1/2″ stile doors (Std.)
• Door Stile – Fits 2″ narrow stile doors – specify NS
• Fasteners – Machine and Self- Drilling Screws standard

Attributes

Alternate Codes: V50-LD-628-48, V50LD62848

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed

Device Width: 48″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Wide Stile, Wood

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 628

Finish Color: Aluminum, Brushed Aluminum, Satin Aluminum

Function: Exit Only

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Value Series V50

Strike Type: Surface Non-Roller Strike

Weatherproof: No
