Wide Stile Fire/Wind Rated Surface Vertical Rod – Detex Corporation

Description

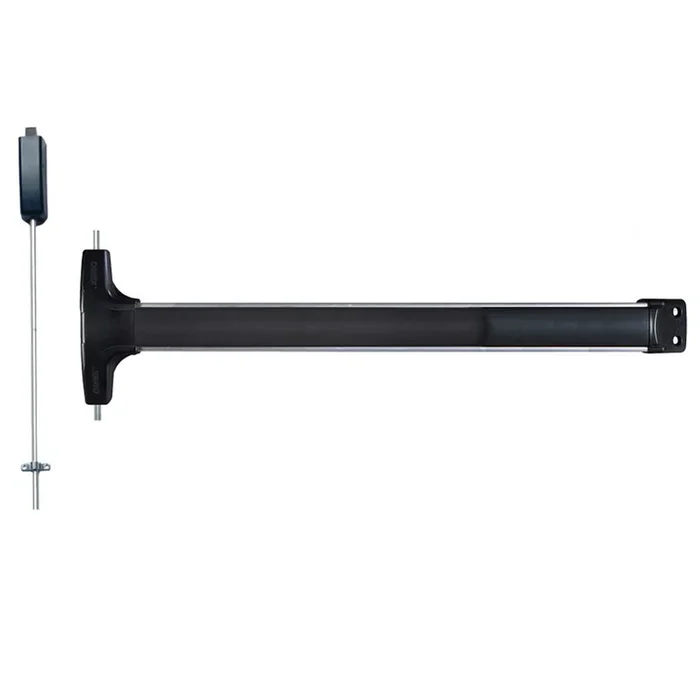

Detex FHV51-LD-628-48 Wide Stile Fire Rated Surface Vertical Rod Exit Device, 48in, Satin Aluminum

Detex Corporation FHV51-LD-628-48 Wide Stile Fire/Wind Rated Surface Vertical Rod (SVR) is a robust exit device designed for double doors without a mullion, offering both panic and fire exit capabilities. This top rod-only model is part of the Value Series, known for its economical design without compromising on durability or aesthetics. The innovative patented mounting plate and strike locator system streamline installation, eliminating the need for complex templates and minimizing door prep time. This exit device features a stainless steel, 3/4″ deadlocking Pullman-type latch bolt and a bottom drop bolt that securely engages into the strike plate. Its field-reversible handing and size adaptability ensure compatibility with various door styles, including aluminum, hollow metal, and wood. The angled end cap is crafted to deflect damage, enhancing the unit’s longevity.With certifications including A156.3, ADA, ANSI, and UL Listed for a 3-hour fire rating, the FHV51-LD-628-48 meets stringent safety standards. Its modular design allows for easy changes to outside trims without needing to remove the device. Ideal for professionals seeking reliable, compliant, and aesthetically pleasing panic hardware, this exit device is an investment in safety and peace of mind.

Wide Stile Fire/Wind Rated Surface Vertical Rod (SVR), TRO (Top Rod Only) – Same as LBR (Less Bottom Rod), Exit Device, Value Series No Trim, Less Dogging, 48in, 628/US28 Satin Aluminum

Notice: The info below is not item specific.

The FHV50 Series, surface vertical rod exit device and FHV51 Series, top rod exit device are heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits:

• Priced to be the best value for durable, attractive panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money
• Fast and easy installation saves time and money
• Fits almost any door in any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Angled end cap deflects damage away from device

Features:

• Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
• Bottom drop bolt, 5/8″ dia. x 5-5/8″ long secures into strike plate
• Handed, field reversible
• Field sizeable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options:

• H – Hurricane Rated
• F – 3-Hour Fire Rated
• CD – Cylinder Dogging
• HD – Hex Dogging (Std.)
• LD – Less Dogging
• 36 – Fits 36″ Door Width (Std.)
• 48 – Fits 48″ Door Width
• For Narrow Stile that fits 2″ Narrow stile glass door see V50xNS/V51xNS
• 84 – Fits 7’ Door Height (Std.)
• 96 – Fits 8’ Door Height
• 120 – Fits 10’ Door Height
• RC – Rod Covers (630 Brushed Stainless)
• BG – Bottom bolt and 12″ ADA ramped cover (630 Brushed Stainless)
• 96 Surface top strike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
• FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
• PT5 – Concealed mortise mount power transfer
• EH8 – Five-knuckle energy transfer hinge – 8 wires

Electrical Options:

• Exit Alarm (EA)
• Electric Battery Alarm (EB)
• Delayed Egress (EE)

Accessories:

• SN1 – Sex Nut Fasteners
• GB# – Glass Bead Kits
• NSK- Narrow Kit – for 2″ narrow stile glass door applications that must be added in the field
• Outside Trim

Technical Information:

• Door Stile – Fits 3-1/2″ stile doors (Std.)
• Door Stile – Fits 2″ narrow stile doors – specify NS
• Fasteners – Machine and Self- Drilling Screws standard

Attributes

Alternate Codes: FHV51-LD-628-48, FHV51LD62848

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ADA, ANSI, BHMA, UL Listed, UL Listed 3 Hour

Device Width: 48″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum, Hollow Metal, Wide Stile, Wood

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 628

Finish Color: Aluminum, Brushed Aluminum, Satin Aluminum

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Handing: Right Handed Reverse

Manufacturer: Detex Corporation

Series: Value Series V50

Strike Type: Surface Non-Roller Strike

Weather Rating: Hurricane Device

Weatherproof: No
