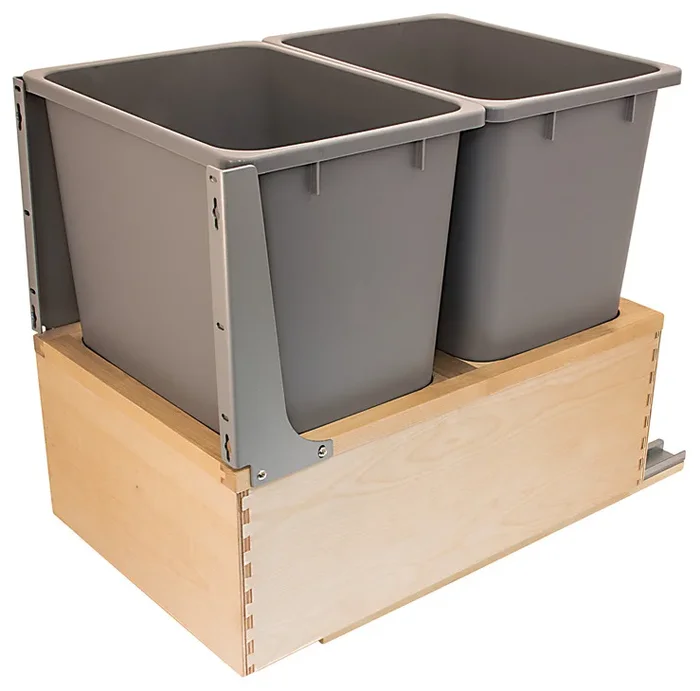

Waste Bin Pull-Out, Wood Frame, Bottom Mount, Double – Hafele

Description

Hafele 503.88.862 Double Pull-Out Waste Bin, Wood Frame, Bottom Mount with Grass Elite Slides

Hafele 503.88.862 Waste Bin Pull-Out features a robust wood frame with a bottom mount design, providing a sleek and efficient solution for waste management in your kitchen or utility space. Designed for both framed and frameless cabinets, it accommodates openings of 15″ wide x 19 3/4″ high or 16 1/2″ wide x 19 3/4″ high, ensuring versatility in installation. This pull-out system includes two 36-quart bins, offering a total capacity of 68 liters, perfect for sorting recyclables and waste. The integrated Grass Elite undermount slides support a generous weight capacity of 36 kg (80 lbs) and come equipped with a soft-close feature, ensuring smooth and silent operation every time the bin is accessed. Constructed from prefinished Baltic birch plywood with a solid birch top and featuring gray plastic bins, this waste bin pull-out not only performs exceptionally but also complements the aesthetics of your cabinetry. Easy mounting is facilitated by the supplied screws and adjustable door mounting bracket, making installation straightforward. With a depth of 22 1/2 inches and an overall height of 19 1/2 inches, the Hafele 503.88.862 is an ideal addition to enhance organization and functionality in any kitchen.

Waste Bin Pull-Out, Wood Frame, Bottom Mount, Double with Grass Elite Undermount Slides

with soft close, 2 x 36 qt

Integrated Grass Elite 36 kg (80 lb.) capacity soft close slides Dovetailed construction Easy mounting to the cabinet floor with supplied screws
Comes with adjustable door mounting bracket

Attributes

Area of application: Designed to fit an opening: Frace Frame: 15″ wide × 19 3/4″ high or Frameless: 16 1/2″ wide x 19 3/4″ high

Bin: 34 l / 34 l

Capacity: 68.00 l

Depth (inch): 22 1/2″

For cabinet depth: 22 3/8″

For cabinet width: ≥367 mm

For internal cabinet height: 495.00 mm

Height (inch): 19 1/2″

Installation depth: 572.00 mm

Material/finish: Prefinished Baltic birch plywood with solid birch topBin: Gray plastic

Number of bins: 2.00

Supplied with: Mounting screws for pull-out 1 Bin Mounting instructions

Width (inch): 14 7/16″

Resources

• Double Waste Bin Pull-Out Mounting Instructions
• Installation instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 3.46
