Description

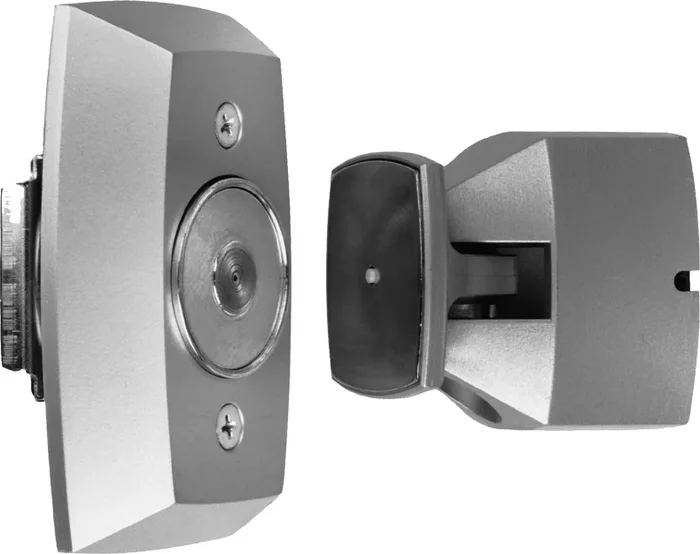

Rixson 998M 689 TRI VOLT Wall Mount Magnetic Holder, Tri-Volt 120VAC/24VAC/12VDC, Aluminum Coated
Rixson 998M 689 TRI VOLT Wall Mount Magnetic Holder offers a robust solution for securing doors while maintaining ease of access. This wall-mounted electromagnetic door holder features concealed wiring for a clean, professional installation. Designed to work with a standard 2″ x 4″ x 1-3/4″ outlet box, it projects a total of 3-5/8 inches, making it a discreet yet effective addition to your security system. With tri-volt compatibility (120VAC, 24VAC, 12VDC), the 998M provides flexibility in electrical configurations. It boasts a holding force of 25-40 lbs, with the option to specify voltages for a stronger 50-55 lbs holding force. This holder is designed to keep doors open unless released by an alarm or smoke detector, ensuring safety without sacrificing accessibility. Notably, its fail-safe operation means that in the event of a power failure, the door will close, enhancing security. Constructed from aluminum with a powder-coated finish, the Rixson 998M is not only durable but also visually appealing, available in multiple finishes including aluminum painted and dark bronze. Backed by a 2-year limited warranty and ANSI/BHMA A156.15, grade 1 certification, this magnetic holder is a reliable choice for access control solutions.
Wall Mount Magnetic Holder, Requires Outlet Box, Tri-Volt 120VAC, 24VAC, 12VDC, Total Projection 3-5/8in, Aluminum Powder Coated 689
Notice: The info below is not item specific.
The 998M electromagnetic door holder is a wall-mounted unit with concealed wiring.
Features:
- Wall mount
- Concealed wiring
- Total projection: 3-5/8″
- Mounting requirements: 2″ x 4″ x 1-3/4″ outlet box
- Wall must be properly reinforced and outlet box adequately fastened
- Tri-volt (120VAC, 24VAC/DC, 12VDC)
- 25-40 lbs. holding force
- For 50-55 lbs. holding force, specify voltage: 120VAC, 24VAC, 24VDC, 12VDC, 240VAC
- Doors remains open unless electromagnetic holder is released by alarm or smoke detector
- Fail safe operation; power failure releases door to close
Specifications:
- Mounting Style: Wall mounted
- Warranty: 2-year limited warranty
- Wiring Installation: Concealed
- ANSI/BHMA A156.15, grade 1
Finishes:
- 689/SP28 – Aluminum painted
- 690/US20 – Dark bronze painted
- 691/US10 – Light bronze painted
- 693/SPBLK – Flat black painted
- 696/US4 – Satin brass painted
Attributes
Alternate Codes: 691030, 998 689 TRI VOLT, 998M 689, 998M 689 TRI VOLT, 998M689TRIVOLT, RIX998 689 TRI VOLT
Category: Access Control, Maglocks, Wall Mounted Maglocks
Finish Code: 689
Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum
