Von Duprin Rim Exit Device – Exit Only No Trim, 36in, Hex Dogging, Grade 1

Description

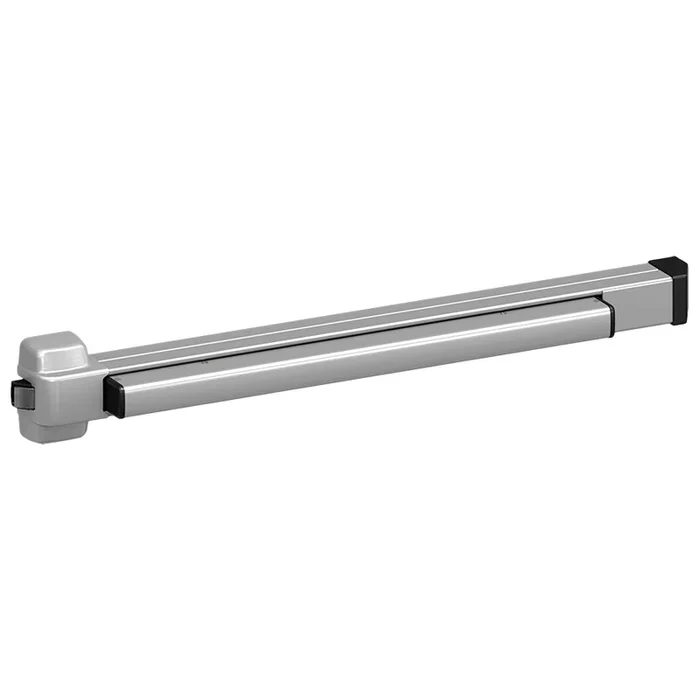

Von Duprin 22EO-689-36 Rim Exit Device, Exit Only, 36in, Hex Dogging, Grade 1, Powder-Coated Aluminum

Von Duprin 22EO-689-36 Rim Exit Device is designed for reliable and efficient exit solutions on all types of single and double doors, including those with mullions. UL listed for panic exit hardware, this Grade 1 rated device meets ANSI A156.3, 2014 standards, ensuring the highest level of safety and performance.With a non-handed design, the 36-inch exit device accommodates stock hollow metal doors featuring the standard 161 door prep cutout, making installation straightforward and versatile. A hex key dogging feature allows for easy operation, while the deadlocking latch bolt, with a 3/4″ throw, enhances security. This exit device is compatible with various trim and electronic options, allowing for customization to meet specific access control needs. It features a sleek powder-coated aluminum finish (689/SP28) that ensures durability and aesthetic appeal.The Von Duprin 22EO is perfect for environments requiring emergency exits, providing peace of mind without compromising on style or functionality. Whether you’re a building professional or a knowledgeable homeowner, this exit device will meet your security needs while maintaining compliance with safety regulations. Upgrade your exit system with this reliable and efficient solution from Von Duprin.

Rim Exit Device, Exit Only No Trim, 36in, Hex Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

Notice: The info below is not item specific.

22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16″ (97 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm) see minimum door opening chart in cut sheet
• 4′ (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
• Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
• Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
• Latch Bolt: Deadlocking, 3/4″ (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device – Wind-Only
• Dogging feature: Hex key dogging standard
• Dogging options: LD: less dogging, QEL option available
• Strikes: 299 – dull black

Minimum Door Opening for 3′ Device:

• For 4′ device, add 6″ (152 mm)
• 26.500″ (673 mm):
• Stop height: 1⁄2″
• Strike: 299
• Single door: Yes
• 25.687″ (652 mm):
• Stop height: 1⁄2″
• Strike: 1439
• Single door: Yes
• 27.000″ (686 mm):
• Stop height: 1⁄2″
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 25.812″ (656 mm):
• Stop height: 1⁄2″
• Strike: 299
• Double door w/mullion: 5654
• 25.750″ (679 mm):
• Stop height: 1⁄2″
• Strike: 1408
• Double door w/mullion: 5754
• 26.562″ (675 mm):
• Stop height: 1⁄2″
• Strike: 1606
• Double door w/mullion: 1654
• 26.750″ (679 mm):
• Stop height: 1⁄2″
• Strike: 299
• Single door: Yes
• 25.937″ (659 mm):
• Stop height: 5⁄8″
• Strike: 1439
• Single door: Yes
• 27.125″ (689 mm):
• Stop height: 5⁄8″
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 26.687″ (678 mm):
• Stop height: 5⁄8″
• Strike: 299
• Double door w/mullion: 5654
• 25.875″ (657 mm):
• Stop height: 5⁄8″
• Strike: 1408
• Double door w/mullion: 5754
• 26.687″ (678 mm):
• Stop height: 5⁄8″
• Strike: 1606
• Double door w/mullion: 1654

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim : 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze

Attributes

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 36″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 689

Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum

Function: Exit Only

Grade: Grade 1

Manufacturer: Von Duprin

Series: 22

Strike Type: Standard
