Von Duprin KIT – RX Request to Exit Switch and SVR Grooved Exit Device

Description

Von Duprin RX-9927L-626-48-LBR-RHR-06 RX Request to Exit Switch, SVR Grooved Exit Device, 996L-06 Lever Trim, Satin Chrome

Von Duprin RX-9927L-626-48-LBR-RHR-06 KIT offers a reliable solution for securing single or double doors with its advanced request to exit switch functionality. This surface vertical rod exit device is designed with a grooved mechanism case and features the 996L-06 lever trim, ensuring ease of access while maintaining high security. Constructed to meet Grade 1 standards, it is UL listed for panic exit hardware, making it ideal for high-traffic environments. The RX-9927L is versatile, accommodating doors sized from 2’ to 4’ and allowing for a standard 39-5/8″ centerline from the finished floor. Its robust design includes a deadlocking anti-friction latch bolt with a 5/8″ throw, providing enhanced security. The device is also equipped with a hex key dogging feature for added convenience, and it can be tailored to specific needs with various electrified and mechanical options. Finished in satin chrome (626/US26D), this exit device seamlessly blends with any décor while offering durability. Designed for a recommended 1/4″ door undercut, it includes all necessary fasteners for easy installation on 1-3/4″ to 2-1/4″ thick doors. Trust the Von Duprin RX-9927L for dependable access control and safety in your building’s exit strategies.

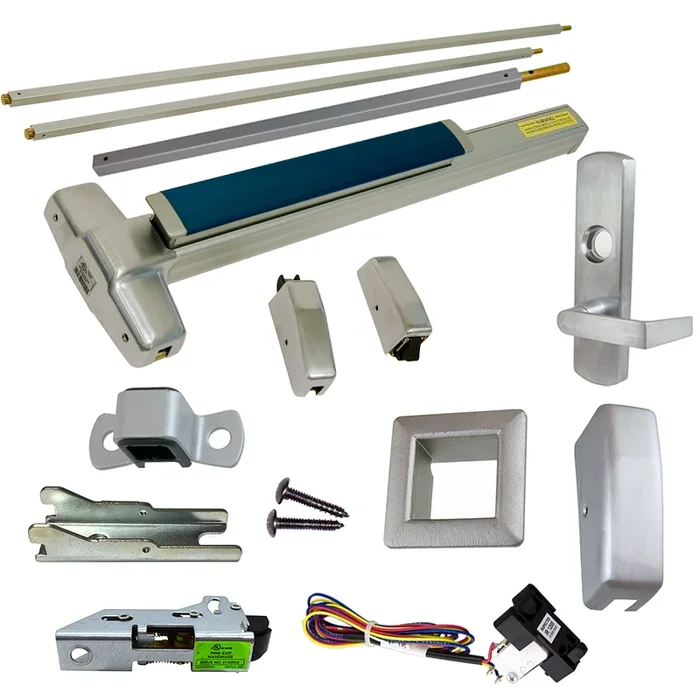

KIT – RX (Request to Exit Switch), SVR (Surface Vertical Rod) Grooved Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), Less Bottom Rods, 48in x 84in, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ – 2’ (610 mm) Door size.
• 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
• 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
• Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16″ (97mm).
• Push bar depressed – 3-1⁄16″ (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
• Door Undercut: 1⁄4″ (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
• Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 299 – Dull black
• Bottom – 248L4 and 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome (antimicrobial)
• 628 – Aluminum, anodized
• 710 – Dark brown, anodized
• 711 – Flat black
• 643E – Aged bronze

Features

• Push bar neutral – 3-13⁄16″ (97mm).
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
• WP-RX: Waterproof request to exit
• 2’ – 2’ (610 mm) Door size.
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• ESL: Emergency secure lockdown
• 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
• Electrified Options:
• LX: Latch bolt monitor switch
• Push bar depressed – 3-1⁄16″ (78mm).
• Strikes:
• SEC: Security screws
• WS: Tornado and hurricane tested
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Projection:
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
• RX: Request to exit
• LD: Less dogging
• ALK: Alarm exit kit
• Top – 299 – Dull black
• AX: Accessible device
• Vertical Rods:
• EL: Electric latch retraction
• Dogging Feature: Hex key dogging standard
• SNB: Sex bolts
• Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
• Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
• CON: Allegion Connect
• Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
• QEL: Quiet electric latch retraction
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Mechanical Options:
• Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• PL: Pullman latch
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• Bottom – 248L4 and 304L – Unfinished
• QM: Quiet mechanical
• Dogging Options:
• CX :Chexit delayed exit
• HDSI: Hex dogging with security indicator
• Door Undercut: 1⁄4″ (7mm) recommended.
• SD: Special center case dogging
• Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
• LBR: Less bottom rod
• CD: Cylinder dogging
• RX2: Double request to exit
• WH: Weep holes

Attributes

Access Type: Request to Exit

Alternate Codes: RX-9927L-626-48-LBR-RHR-06, RX9927L62648LBRRHR06

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 48″

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Classroom, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Options: Less Bottom Rod

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Less Bottom Strike, Standard
