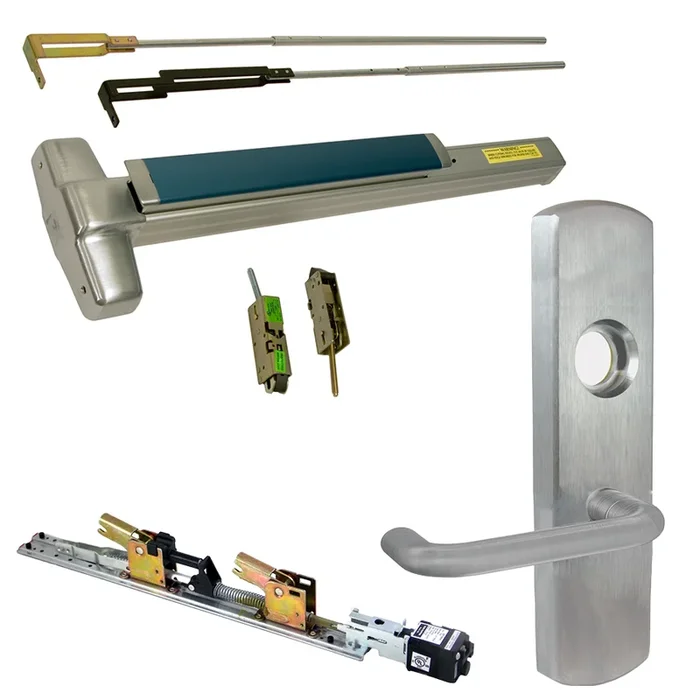

Von Duprin KIT – QEL CVR Smooth Exit Device with 996L-03 Lever Trim

Description

Von Duprin QELA-9847L-626-36-LHR-03 KIT QEL CVR Smooth Exit Device, 996L-03 Lever Trim, LHR, 36in-96in, Grade 1

Von Duprin QELA-9847L-626-36-LHR-03 KIT is a sophisticated Quiet Electric Latch Retraction (QEL) exit device designed for both single and double metal doors. This concealed vertical rod (CVR) device combines functionality with elegance, featuring a satin chrome finish (626/US26D) that complements any commercial space. Rated Grade 1, it meets ANSI A156.3 standards and is UL listed for panic exit hardware, ensuring reliability and security. With a device length adjustable from 36 inches up to 96 inches, the QELA-9847L accommodates various door sizes. The latch bolt features deadlocking top and bottom bolts with a robust 5/8″ throw, providing enhanced security. The device is designed with a centerline of 39 5/8″, adjustable from 35 5/8″ to 49 5/8″, allowing for easy installation. This product also includes a 996L-03 lever trim, which requires a rim cylinder, making it versatile for different locking requirements. The left-hand reverse/reversible handing allows for straightforward adaptability to various installations. Additionally, the device boasts a hex key dogging feature and offers various electrical options, including request to exit and electric latch retraction, enhancing its functionality for modern security needs.Choose the Von Duprin QELA-9847L for a reliable, stylish solution to your exit hardware requirements.

KIT – QEL (Quiet Electric Latch Retraction), CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-03 Lever Trim (Requires Rim Cylinder), LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Door undercut: 1/4″ (7mm) recommended
• Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging feature: Hex key dogging standard
• Dogging options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright Brass
• 606 – Satin Brass
• 612 – Satin Bronze
• 613 – Satin Bronze-Oil Rubbed
• 625 – Bright Chrome
• 626 – Satin Chrome
• 626-AM – Satin chrome, Antimicrobial coating
• 643e – Aged Bronze
• 693 – Painted Black
• 721 – Bright Brass
• 728 – Satin Brass

Features

• Top – 338 – Unfinished
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• CD-CX: Chexit cylinder dogging
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Push bar depressed – 3-1/16″ (78 mm)
• LX: Latch bolt monitor switch
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• SEC: Security screws
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• Door undercut: 1/4″ (7mm) recommended
• Projection:
• RX: Request to exit
• LD: Less dogging
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• ALK: Alarm exit kit
• Push bar neutral – 3-13/16″ (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• PL: Pullman latch
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• CX: Chexit delayed exit
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Dogging feature: Hex key dogging standard
• Dogging options:
• LBR: Less bottom rod
• CD: Cylinder dogging
• RX2: Double request to exit
• WH: Weep holes

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: QELA-9847L-626-36-LHR-03, QELA9847L62636LHR03

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Center Line: 3′ 3-5/8″

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Hollow Metal Frame

Door Thickness: 1-3/4″

Door Type: Hollow Metal

Electrical Option: Electric Latch Retraction, Quiet

Exit Device Category: Concealed Vertical Rod Exit CVR

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Classroom, Lever

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: 3

Manufacturer: Von Duprin

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
