Description

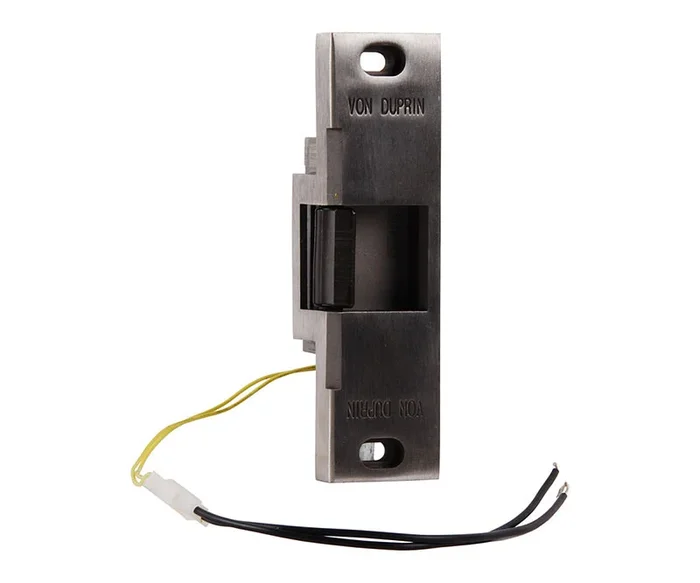

Von Duprin 6113 12V 32D DS Rim Exit Electric Strike 630
Von Duprin 6113 12V 32D DS Electric Strike is a robust Grade 1 electric strike designed for maximum security and reliability. This fail secure model operates at 12 VDC and features a durable 6″ x 1-5/8″ faceplate, making it suitable for rim exit devices installed on single doors of hollow metal, aluminum, or wood frames. The satin stainless steel finish not only enhances its aesthetic appeal but also adds to its resilience. Constructed from heavy-duty stainless steel, the 6113 electric strike is UL1034 and UL10C listed, providing assurance of its burglary resistance and fire door compatibility. It boasts a 1500 lb hold force rating, ensuring that your door remains securely locked against unauthorized entry. The non-handed design allows for versatile installation, while the adjustable strike box compensates for any misalignment between the door and frame, ensuring seamless operation. With features such as two-piece plug connectors for easy installation and maintenance, and an endurance rating of 1,000,000 cycles, the Von Duprin 6113 is a top choice for commercial applications. This electric strike meets BHMA A156.31, Grade 1 standards, making it an ideal solution for those seeking a reliable, durable, and secure locking mechanism.
Electric Strike, Rim Exit 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 12 VDC, 6″ x 1-5/8″ Faceplate, Fire Rated, For use with Rim Exit Devices on Single Doors, Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Reliable, durable, and secure.
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.
- Non-handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing § ANSI 156.5 Grade 1, 1500 lb hold force rated
- UL1034 burglary-resistant and UL10C electric strike for fire door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs § Dynamic strength 70 ft-labs
- Endurance 1,000,000 cycles
Attributes
Manufacturer surcharge: 7.0%
Accessible: No
Ada Compliance: No
Amp Draw: 600mA
Application: Single Door
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Depth: 9/16″
Faceplate Size: 6″ x 1-5/8″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Rim Exit Devices
Frame Application: Hollow Metal, Aluminum, or Wood
Frame Depth: 1-15/16″
Function: Fail Secure
Grade: Grade 1
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 12 VDC
Origin: USA
Pack Height: 2.63″
Pack Length: 10.5″
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88″
Product Height: 2.5″
Product Length: 6″
Product Width: 1.63″
Ramp Cut Out: 2-1/4″
Restrictions: None
Series: 6100 Series Electric Strikes
Ship Weight: 2.2 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
Resources
- 5100/6100/6200/6300 Series Electric Strikes Service Manual
- 6000 Electric Strike Installation Instructions
- 6000 Electric strike DSReplacement Kit Installation Instructions
- 6000 Entry Buzzer Wiring Diagram
- 6000 Series Electric Strike Refurbish Kit Installation Instructions
- 6111/6111DS Double Door Installation Instructions
- 6111/6111DS Single Door Installation Instructions
- 6112/6112DS Installation Instructions
- 6113/6113DS Installation Instructions
- 6114/6114DS Installation Instructions
- 6121/6121DS Installation Instructions
- Von Duprin 6100 Series Catalog
- Von Duprin Finishes Chart
