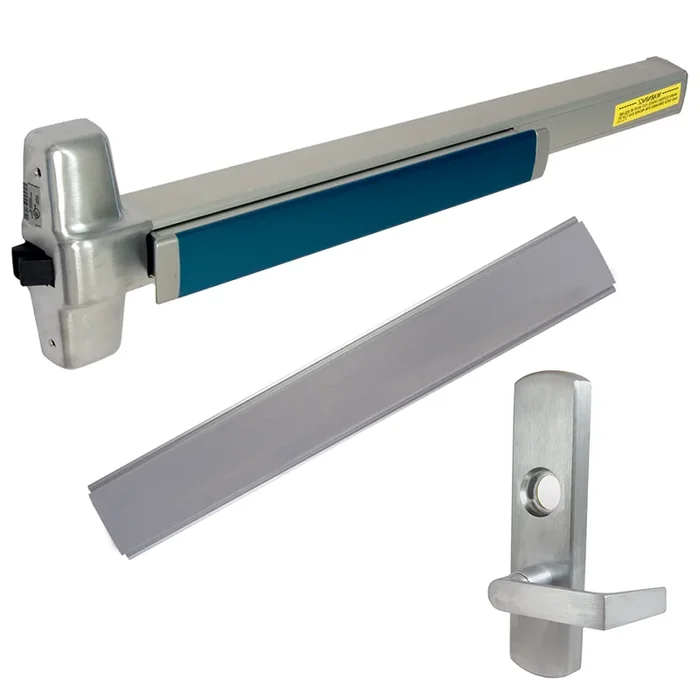

Von Duprin 996L-06 Rim Exit Device Kit – Less Dogging, Satin Chrome

Description

Von Duprin LD-98L-626-48-RHR 06 KIT Less Dogging Rim Exit Device 996L-06 Lever Trim RHR 48in Grade 1 Satin Chrome

Von Duprin LD-98L-626-48-RHR 06 KIT is a highly versatile rim exit device designed to meet the demands of high-traffic environments like schools, hospitals, and government facilities. This Grade 1 certified device features a 48-inch length and a sleek satin chrome finish (626/US26D) that fits seamlessly into modern architectural designs. With its less dogging configuration, the LD-98L is ideal for panic exit situations while offering the flexibility of reversible handing for right-hand reverse applications. This exit device is UL listed for panic exit hardware and complies with ANSI/BHMA A156.3 standards, ensuring reliability and safety. The modular design allows for easy upgrades and maintenance, accommodating changing technology and user needs over time. It includes a range of field-configurable options, making it adaptable to various door types, including stock hollow metal doors with specific cutouts. The device boasts a durable deadlocking latch bolt with a ¾” throw for enhanced security. Additionally, it comes with a comprehensive screw pack for installation on various door thicknesses. With options for electric locking, request-to-exit features, and various mechanical configurations, the Von Duprin LD-98L-626-48-RHR 06 KIT is the ultimate solution for robust security and accessibility in any facility.

KIT – Less Dogging, Rim Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing, 48in, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Features:

• Built-in flexibility with a universal center case that provides migration path to new technology
• Highly modular allowing product upgrades to meet customer’s changing needs
• Easy maintenance with extensive serviceable parts options
• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes: 299 – Dull black

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome
• 628 – Aluminum, anodized
• 710 – Duranodic dark bronze
• 711 – Matte black/anodized
• 643e – Aged bronze

Attributes

Alternate Codes: VONLD-98L-626-48-RHR 06

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 48″

Dogging: LD – Less Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Classroom, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 98/99

Strike Type: Standard
