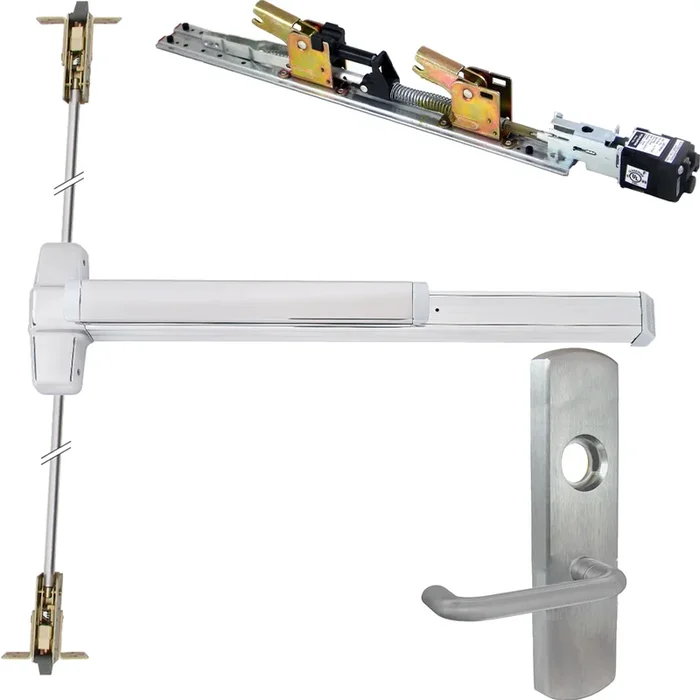

Von Duprin QELA-9847L-F-626-36-LHR-03 Fire-Rated QEL CVR Smooth Exit Device, 996L-03 Lever Trim, LHR, 36-96in, Grade 1
Von Duprin QELA-9847L-F-626-36-LHR-03 KIT is a fire-rated exit device featuring Quiet Electric Latch Retraction (QEL) and Concealed Vertical Rod (CVR) design, making it an ideal choice for high-traffic areas requiring both security and safety. Certified to ANSI/BHMA A156.3 2014, Grade 1, and UL listed for fire exit hardware, this unit ensures compliance with stringent safety standards. Designed for doors measuring 36 inches wide and up to 96 inches tall, this device provides a reliable solution for egress. Its left-hand reverse handing allows for versatile installation, while the deadlocking top and bottom bolts with a 5/8-inch throw enhance security. The smooth exit device operates effortlessly, and its adjustable vertical rods accommodate door heights from 6’8″ to 8’4″. With a satin chrome finish (626/US26D), the QELA-9847L is both stylish and durable, complementing various architectural designs. The device includes an 8″ x 2-3/4″ center case and comes with a screw pack for easy installation on metal doors ranging from 1 3/4″ to 2 1/4″ thick. Whether for educational facilities or commercial buildings, this exit device promises reliability and ease of use, ensuring safe passage in emergencies.
KIT – Fire-Rated, QEL (Quiet Electric Latch Retraction), CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-03 Lever Trim (Requires Rim Cylinder), LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.
Specifications:
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- Door undercut: 1/4″ (7mm) recommended
- Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging options: No mechanical dogging; QEL options available
- Strikes:
- Top – 338 – Unfinished
- Bottom – 385A – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 613 – Satin bronze-oil rubbed
- 625 – Bright chrome
- 626 – Satin chrome
- 626-AM – Satin chrome, antimicrobial coating
- 643e – Aged bronze
- 693 – Painted black
- 721 – Bright brass
- 728 – Satin brass
Features
- Projection:
- Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
- Top – 338 – Unfinished
- RX: Request to exit
- GBK: Glass bead kit
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- ALK: Alarm exit kit
- -2SI: Double cylinder with security indicator
- Push bar neutral – 3-13/16″ (97 mm)
- EL: Electric latch retraction
- SNB: Sex bolts
- CON: Allegion Connect
- -2: Double cylinder
- PN: Pneumatic latch retraction
- QEL: Quiet electric latch retraction
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- Mechanical Options:
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- WP-RX: Waterproof request to exit
- PL: Pullman latch
- Device Lengths:
- E: Electric locking and unlocking trim
- SS: Signal switch
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- ESL: Emergency secure lockdown
- CX: Chexit delayed exit
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Dogging options: No mechanical dogging; QEL options available
- Push bar depressed – 3-1/16″ (78 mm)
- LX: Latch bolt monitor switch
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Electrical Options:
- Strikes:
- Bottom – 385A – Unfinished
- SEC: Security screws
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- LBR: Less bottom rod
- Door undercut: 1/4″ (7mm) recommended
- RX2: Double request to exit
- WH: Weep holes
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: QELA-9847L-F-626-36-LHR-03, QELA9847LF62636LHR03
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Concealed Vertical Rod Exit CVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Classroom, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 3
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
