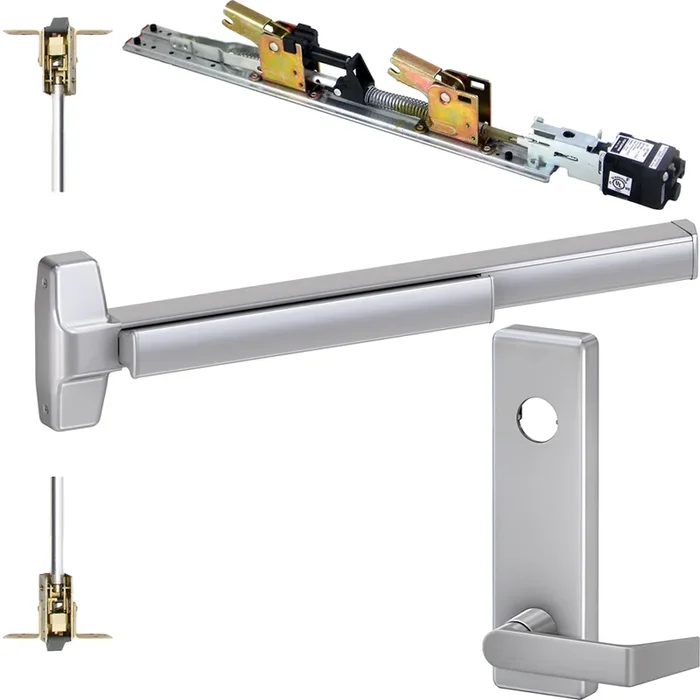

Von Duprin 780L-NL-06 Fire-Rated Exit Device with QEL and CVR Features

Description

Von Duprin QELA-7847L-NL-F-626-48-RHR-06 Fire-Rated QEL CVR Exit Device with 780L-NL-06 Night Latch, Satin Chrome

Von Duprin QELA-7847L-NL-F-626-48-RHR-06 KIT is a fire-rated, Quiet Electric Latch Retraction (QEL) exit device designed for high-traffic environments where noise reduction is essential. This advanced system features concealed vertical rods and includes the 780L-NL-06 night latch lever trim, requiring a 1-1/4 inch mortise cylinder for operation. With a right-hand reverse handing and an adjustable length accommodating doors from 48 inches up to 96 inches, this device is versatile and user-friendly. Engineered to meet ANSI/BHMA A156.3 2014 Grade 1 and UL certification for fire exit hardware, the QELA-7847L offers both mechanical egress and electronic control, making it ideal for integration with access systems. The QEL allows for momentary latch retraction, enhancing accessibility for authorized individuals while ensuring secure exits. Constructed with a satin chrome finish, this device not only provides durability but also complements modern architectural aesthetics. The unit’s deadlocking latch bolt features a 5/8 inch throw for added security, while the no-dogging design maintains safety compliance. This product is suitable for various applications, including panic devices and exit alarms, and is designed for hollow metal doors with a thickness of 1-3/4 inches.

KIT – Fire-Rated, QEL (Quiet Electric Latch Retraction), CVR (Concealed Vertical Rods) Exit Device, 780L-NL-06 Night Latch Lever Trim (Requires 1-1/4in Mortise Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The 7847-F fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The electrified latch retraction can also be activated by an access system or building automation system to unlatch the exit device momentarily. Often the QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users. The QEL can also be configured to electronically retract the latch for an extended period of time to allow free entry. This is a convenient alternative to mechanical dogging. If manual dogging required on a panic rated QEL device, the hex dogging option is available, to order specify HD-QEL. The QEL option is available on panic devices and fire rated devices. UL approved for class II circuit applications. The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply. The 900 series power supply with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see 900 Series power supply for additional information. The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply. The -2RS option board is designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. The power transfer is also sold separately.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3′ and 4′ lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
• 4′: 3′ to 4′ (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16″ (1011mm)
• 39-11/16″ (1008mm) with mullion
• Center Case: 7-7/8″ x 2-3/4″ x 2-3/8″ (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
• Projection:
• Pushbar neutral – 3-13/16″ (97mm)
• Pushbar depressed – 3-1/16″ (78mm)
• Latch bolt: Deadlocking, 5/8″ (15.875mm) throw
• Pushbar length:
• 3′: 18″ (457mm)
• 4′: 24″ (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Bolt retraction via switch
• Converts exit door to push-pull operation
• Voltage: 24VDC
• Current: 1.0 A inrush (0.5 sec.) / 0.14 A holding
• Mechanical Options:
• GBK: Glass bead kit
• LBR: Less bottom rod
• SNB: Sex bolts
• SEC: Security screws
• Dogging Options: No mechanical dogging
• Strikes:
• 338: Top—Unfinished
• 385A: Bottom—Unfinished

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4″ mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever – blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 626 – Satin chrome
• 628 – Anodized aluminum
• 630 – Satin stainless steel
• 643e – Aged bronze
• 710 – Duranodic dark bronze

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: QELA-7847L-NL-F-626-48-RHR-06, QELA7847LNLF62648RHR06

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Center Line: 3′ 3-5/8″

Certifications: A156.3, ANSI, ANSI/UL 10C, BHMA, UL 305, ULC-S104

Device Width: 48″

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Hollow Metal Frame

Door Thickness: 1-3/4″

Door Type: Hollow Metal

Electrical Option: Electric Latch Retraction

Exit Device Category: Concealed Vertical Rod Exit CVR

Finish Code: 626, 630

Finish Color: Brushed Chrome, Satin Chrome, Satin Stainless Steel

Fire Rated: Yes

Fire Rating: 180 min

Function: Lever, Night Latch

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 78

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Stile Width: Wide Stile

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
