Universal Heavy Duty Closer AL by LCN – Durable Door Hardware

Description

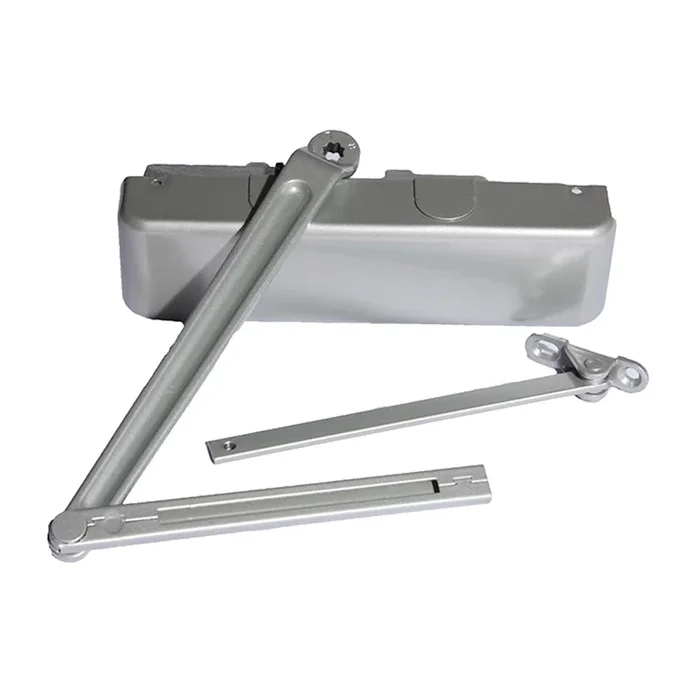

LCN 4031-RW/PA 689 Universal Heavy-Duty Door Closer AL

LCN 4031-RW/PA 689 Universal Heavy Duty Closer AL is a robust door closer designed to meet the demands of moderate traffic environments. Crafted from cast iron, this universal closer features a forged steel main arm, ensuring durability and reliability. It’s versatile enough to accommodate different mounting styles, including hinge side, top jamb, and parallel arm installations for both right and left swinging doors. This model is engineered for doors up to 36 inches wide for exterior applications and 48 inches for interior use, and it complies with ADA requirements, making it suitable for various commercial settings. The closer is UL and cUL listed for self-closing doors and has been rigorously tested under ANSI Standard A156.4, achieving a grade one rating. With a full metal cover and an attractive matte silver finish, the LCN 4031 is not only functional but also aesthetically pleasing. It offers optional custom powder coat finishes and is available with SRI primer for installations in corrosive conditions. Backed by a remarkable 30-year limited warranty, this closer is a dependable choice for any commercial project, delivering performance and peace of mind.

Universal Heavy Duty Closer AL

Regular Arm w/62PA Shoe Door Closer, Aluminum

The 4030 is a cast iron universal door closer designed for doors with moderate traffic.

The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.

The LCN 4030 Series is designed specifically for doors in moderate traffic conditions.This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

• Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

Attributes

Manufacturer surcharge: 4.5%

Baa Qualified: Yes

Base Material: Varies

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Cover: Full Metal

Degree Swing: 180 Deg.

Finish: 689/US28

Finish Family: Matte Silver

Grade: Grade 1

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 30 Years

Mounting Group: Hydraulic

Mounting Location: Push or Pull Side

Mounting Style: Tri Mount

Pack Qty: 1

Series: 4030 Series Surface Mounted Closers

Ship Weight: 9 lbs.

Subtype: Surface Closers

Type: Surface

Unit of Measure: Each

Upc: 289436

Resources

• 4030 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4030 CUSH Series Installation Instructions
• LCN 4030 Peel-N-Stick Series Installation Instructions
• LCN 4030 Series Cut Sheet
• LCN 4030 Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
