Universal HD Closer GLBLK – LCN Heavy Duty Surface Door Closer

Description

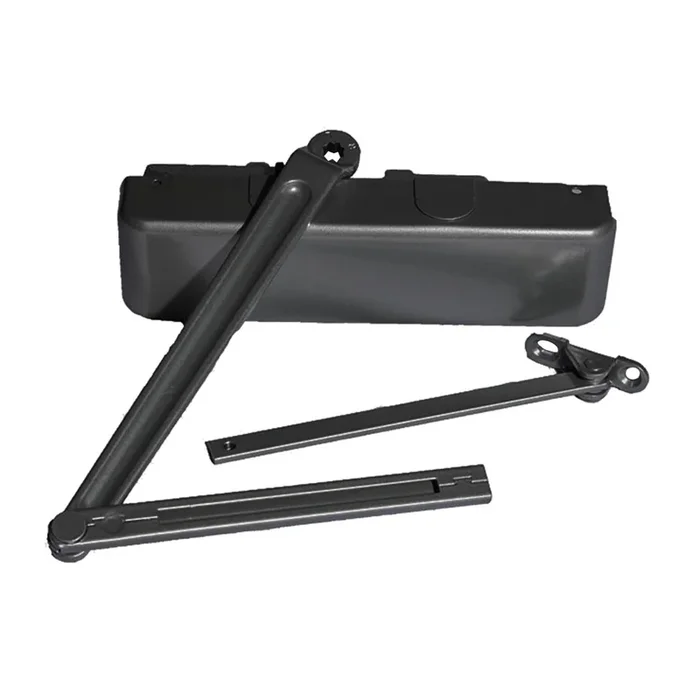

LCN 4031-Rw/PA 693 Universal HD Door Closer – GLBLK

LCN 4031-Rw/PA 693 Universal HD Closer GLBLK offers a robust solution for high-traffic environments, combining durability with versatile functionality. This Grade 1 door closer features a regular arm with a parallel arm bracket, allowing for pull-side mounting and a full 180-degree swing. Adjustable from sizes 1 to 4 (factory set to size 3), it is designed to accommodate a variety of door sizes, making it ideal for both exterior doors up to 36 inches and interior doors up to 48 inches. Constructed from cast iron with a forged steel main arm, the LCN 4031 is built to withstand the rigors of daily use while meeting ADA requirements for accessibility. Its non-handed design and black painted finish ensure it seamlessly fits into various commercial settings. The closer is UL and cUL listed for self-closing doors without hold-open functionality and has been rigorously tested under ANSI Standard A156.4, guaranteeing reliability and performance. Additional features include a plastic cover, a 30-year limited warranty, and optional powder coat finishes for enhanced aesthetics. Ideal for commercial applications, the LCN 4031-Rw/PA is a trusted choice for professionals seeking quality and adaptability in door hardware solutions.

Universal HD Closer GLBLK

Grade 1 Door Closer, Regular Arm with Parallel Arm Bracket, Pull Side Mounting, 180 Degree Swing, Adjustable Size 1 to 4 (Set to 3), Plastic Cover, Non-Handed, Black Painted Finish

The 4030 is a cast iron, universal closer designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.

The LCN 4030 Series is designed specifically for doors in moderate traffic conditions.This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

• Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.4

Arm Type: Regular Arm

Baa Qualified: Yes

Closer Size: 1 to 4

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: Plastic

Degree Swing: 180 Deg.

Finish: 693

Finish Family: Black

Grade: Grade 1

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 30 Years

Mounting Group: Hydraulic

Mounting Location: Pull Side

Mounting Style: Top Jamb

Origin: USA

Screw Type: Self-Tapping

Series: 4030 Series Surface Mounted Closers

Ship Weight: 8.5 lbs.

Subtype: Surface Closers

Type: Surface

Ul Listing: UL 10C

Unit of Measure: Each

Resources

• 4030 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4030 CUSH Series Installation Instructions
• LCN 4030 Peel-N-Stick Series Installation Instructions
• LCN 4030 Series Cut Sheet
• LCN 4030 Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• Von Duprin Finishes Chart
