Description

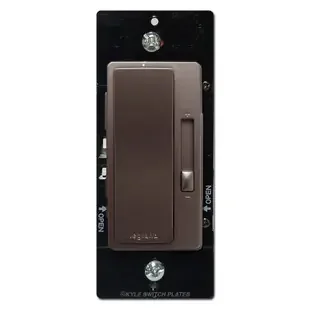

Take your home beyond ordinary with Legrand’s dark bronze true-universal light dimmer switch that works with nearly every dimmable lamp, load, and fixture (except 0-10V loads). This flexibility allows you to choose the modern lighting fixtures that best reflect the style and functionality you want.
Features
- Rating: Incandescent, Halogen & ELV: 700W, MLV: 500VA, LED/CFL: 450W, EFL: 5.5A
- S/P (single pole) or 3W (3-way) installation diagrams include for each option
- smooth, sleek satin metallic dark bronze finish; high-impact resistant construction
- dimmers can be installed next to each other with no derating and no need to trim off fins
- Legrand radiant® collection universal dimmer.
- Choose your lamp type, and the dimmer self-calibrates automatically to set the minimum voltage to eliminate flickering and poor performance.
- Works with nearly any dimmable lamp and light fixture on typical residential and light commercial wiring (exception for 0-10V LED drivers).
- LED drivers that work with both forward and reverse phase dimming should work with it.
- Easy to use wider slider bar controls the dimming functionality and the large paddle switch controls ON/OFF usage.
- Preset, single pole and 3-way operation for the greatest flexibility.
- After a power failure, the constant memory feature returns lights to previous level used.
- Tiny LED locator light at the top glows white when the dimmer is OFF to easily find it the dark.
- 4.25″ height, 1.75″ width, 1.25″ depth (narrow housing – easily ganged with no derating)
- black aluminum straps disperse heat for maximum efficiency
- Tru-Universal requires Neutral.
- UL and cULus listed; LEED contribution: yes; NEMA rating: yes
- SSL 7A Compliant
- Also includes other interchangeable face colors
