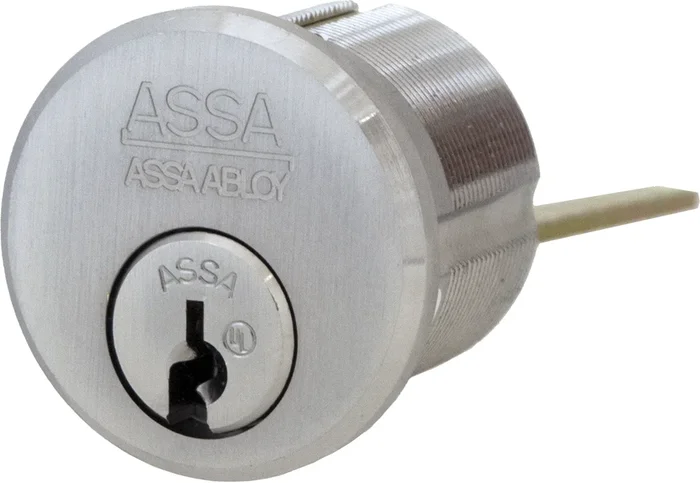

Twin 6000 1-1/8in Rim Cylinder, Horizontal Tailpiece, Satin Chrome

Description

Assa Abloy 6551-H-626-SUB-52-518 Twin 6000 Rim Cylinder 1-1/8in, Horizontal Tailpiece, Satin Chrome

Assa Abloy Inc. 6551-H-626-SUB-52-518 Twin 6000 1-1/8in Rim Cylinder offers robust security solutions for both residential and commercial applications. Designed for use on apartment and condominium doors, this high-security rim cylinder features a horizontal tailpiece and is sub-assembled for easier installation. Built with a drill-resistant cylinder housing and plug, this model boasts case-hardened steel inserts and stainless steel pins, ensuring exceptional durability. The dual independent locking mechanisms significantly enhance security, while inactive “false” grooves on the side pins work to increase pick resistance. Each chamber position is equipped with counter mills to further bolster resistance against unauthorized access.The 6551-H-626-SUB is U.L. 437 Listed, providing peace of mind with its industry-recognized certification. With extremely close tolerances, this rim cylinder can also be easily rekeyed in the field, accommodating various security needs. Available in a stylish satin chrome finish, it complements modern door hardware aesthetics. This rim cylinder supports standard and Sargent hole patterns and can be effortlessly converted to a mortise cylinder by swapping the tailpiece assembly. With its combination of style, security, and adaptability, the Assa Abloy 6551-H-626-SUB-52-518 is an ideal choice for discerning property owners and building professionals.

Twin 6000 1-1/8in Rim Cylinder, Horizontal Tailpiece, Sub-Assembled, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Commonly used on apartment and condominium doors, ASSA rim cylinders are used on vertical deadbolt locks and are also designed for commercial exit and panic devices. Available with either horizontal/vertical break-off or lazy-motion type break-off tailpieces, ASSA rim cylinders can be ordered with the standard or the Sargent rim exit device mounting patterns. The standard rim cylinder can be easily converted to a mortise cylinder by simply replacing the rim tailpiece assembly with the appropriate cam.

Features:

• Benefits:
• Drill resistant cylinder housing and plug
• Case-hardened steel inserts and stainless steel pins
• Two independent locking mechanisms to ensure security and optimum pick resistance
• Inactive “false” grooves on side pins designed to increase pick resistance
• Counter mill in each chamber position to further enhance pick resistance
• Extremely close tolerances
• Can be easily rekeyed in the field
• Standard and Sargent hole pattern available
• Standard rim cylinder is easily converted to mortise cylinder
• Certification:
• All ASSA Maximum+ and Twin Series Rim cylinders are U.L. 437 Listed
• Technical Information:
• Available with limited rotation and/or unidirectional Features
• Cylinder housing and plug are made of high quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver

Finishes:

• 625/US26 – Bright Chrome
• 626/US26D – Satin Chrome
• 605/US3 – Bright Brass
• 606/US4 – Satin Brass
• 612/US10 – Satin Bronze
• 624/US10B – Dark Oxidized Bronze

Attributes

Alternate Codes: 145520, 6551-H626-SUB, 6551H626SUB, 6551-H-626-SUB-52-518, 6551H626SUB52518, ASA6551-H-626-SUB, ASA6551-H626-SUB

Cam/ Tailpiece: Horizontal Tail

Category: Cylinders, High Security Cylinders, High Security Locks, Key Blanks & Accessories, Lock Components, Etc., Lock Parts, Lock Sets, Rim Cylinders

Cylinder Style: Sub-Assembled, With Sidebar

Cylinder Type: Rim Cylinder, Twin 6000 Classic

Finish Code: 626

Finish Color: Satin Chrome

Keyway: Assa Profile 52

Manufacturer: ASSA Abloy

Size: 1-1/8in
