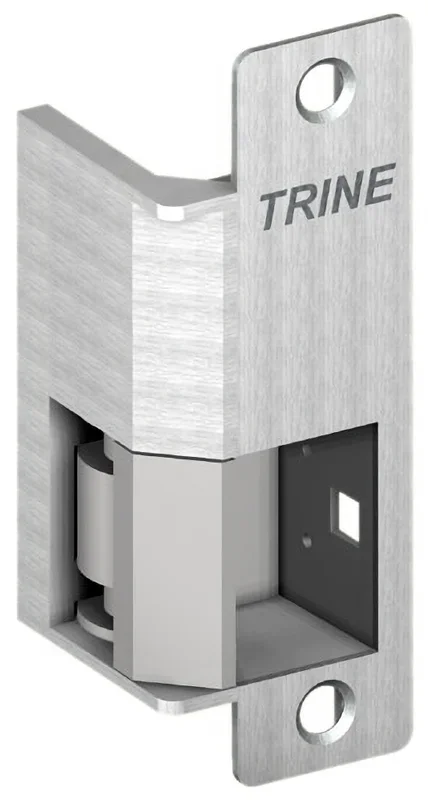

Trine Access Technology Electric Strike – Fire Rated, 12VDC, Satin Stainless Steel

Description

Trine EN43012DC32DRH Fire Rated Electric Strike, 12VDC, Field Selectable, Satin Stainless Steel

Trine Access Technology EN43012DC32DRH Electric Strike is a robust and versatile solution, designed for both indoor and outdoor use, with a satin stainless steel finish that enhances durability and aesthetic appeal. This electric strike features a fire-rated design and operates at 12V DC, ensuring reliable performance in a variety of environments. One of its standout features is the field-selectable fail status, allowing for customization to meet specific security needs. The 4-7/8″ x 1-1/4″ faceplate, accompanied by four popular faceplates for cylindrical locks and deadlatches, simplifies installation and specification, particularly on aluminum frames. With a throw of up to 7/8″ and a 1-1/16″ shallow backset, it addresses installation challenges in commercial spaces, including glass storefronts. The EN430 also includes a 1/4″ horizontal adjustment, providing flexibility that sets it apart from competing models. Its low current draw of 0.240 A at 12V DC makes it PoE-friendly, accommodating various electrical setups. Moreover, the included trim skirt conceals any installation irregularities, ensuring a clean finish. Recognized for its UL1034 burglary resistance and meeting ANSI A156.5 Grade 1 standards, the Trine EN43012DC32DRH Electric Strike is an ideal choice for building professionals seeking reliable security solutions.

Electric Strike, Fire Rated, 12VDC, Field Selectable FS or FSE, 4-7/8in x 1-1/4in Faceplate, up to 7/8in Throw, Right Hand, Satin Stainless Steel, Indoor/Outdoor, Cavity Centerline Offset 1in

Notice: The info below is not item specific.

We include the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.

Features:

• 1/4″ Horizontal Adjustment — The 4300 has a great 1/4″ horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
• Four popular faceplates included — including the 4 most used faceplates for cylindrical locks and deadlatches
• 1-1/16″ Shallow backset — the electric strike solves depth problems, as with glass store fronts.
• Low Current Draw — .240 Amp at 12DC makes it very PoE friendly 12 & 24DC: 12 through 24 AC. All the low voltage and amperage flexibility you need
• The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
• The 4300 electric strike latch solves the axillary latch pin problems many other electric strikes run into.
• Cutout specification A115.1 (with slight jamb modification)

Standards:

• WH recognized for UL1034 burglary resistant
• WH recognized for UL294 (6th edition) listed
• ANSI A156.5 – 1992 – 4-7/8″ x 1-1/4″ fits
• Grade 1 electric strike

4300 Electrical Characteristics:

• Volts: 12DC
• Current: 0.240 A
• Ohms (Ω): 50
• Duty: Into./Cont.
• Sound: Silent
• Wire: Blue/Red
• Volts: 24DC
• Current: 0.114 A
• Ohms (Ω): 210
• Duty: Into./Cont.
• Sound: Silent
• Wire: Brown/Red
• Volts: 12AC
• Current: 0.210 A
• Ohms (Ω): 50
• Duty: Into.
• Sound: Buzz
• Wire: Blue/Red
• Volts: 16AC
• Current: 0.280 A
• Ohms (Ω): 50
• Duty: Into.
• Sound: Buzz
• Wire: Blue/Red
• Volts: 24AC
• Current: 0.420 A
• Ohms (Ω): 50
• Duty: Into.
• Sound: Buzz
• Wire: Blue/Red

Finishes:

• 32D/630 – Satin stainless steel
• ALUM – Aluminum powder coat
• BLK – Black powder coat
• DKBZ – Dark bronze Powder coat

Attributes

Alternate Codes: 140640, EN43012DC32DRH

Category: Access Control, Electric Strikes

Faceplate Size: 4-7/8″ x 1-1/4″

Faceplate Style: Round Corner

Fail Status: Field Selectable

Finish Color: Satin Stainless Steel

Frame Type: Metal

Grade: Grade 1

Handing: Right Hand

Lock Category: Mortise

Throw: 7/8″

Voltage: 12V DC
