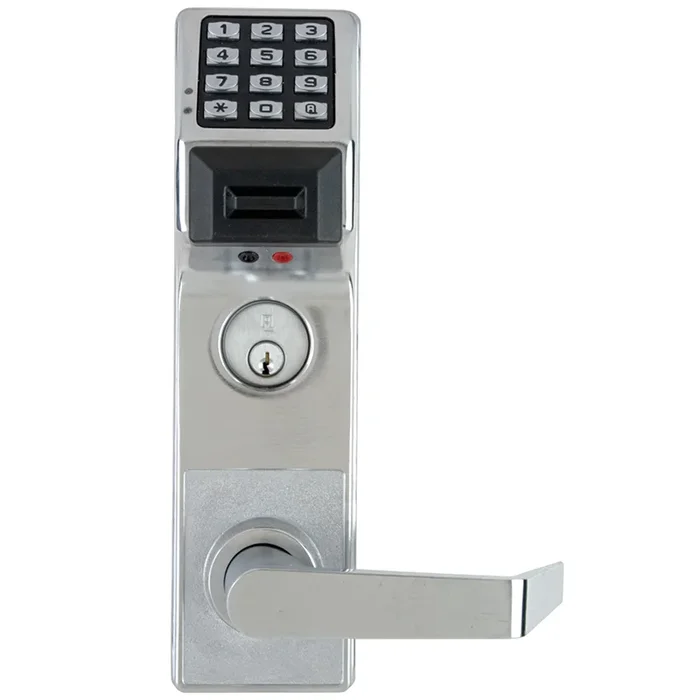

Alarm Lock PDL3500CRL US26D Trilogy T3 Mortise Lock Instructions
Alarm Lock PDL3500CRL US26D Trilogy T3 Mortise Lock combines robust security with advanced technology, making it an ideal choice for commercial applications. This pushbutton classroom mortise lock features a built-in HID proximity reader, accommodating up to 300 users with customizable access through 2000 user codes (ranging from 3-6 digits) and/or prox cards and fobs. Designed for versatility, the PDL3500CRL supports multilevel security with master, manager, supervisor, and basic user levels. The easy Tap & Add batch card enrollment mode allows for quick integration of multiple cards without the need for a PC. Programmable via fingertip or Windows PC, it also includes a real-time clock for up to 500 scheduled events and a 40,000 event audit trail, providing a detailed log of all electronic activity. Built to withstand harsh environments, this weatherproof lock operates in temperatures from -31°F to +151°F and is powered by a long-life battery pack that supports up to 75,000 cycles. Available in a sleek satin chrome finish, the PDL3500CRL is a Grade 1 lock designed for doors with a thickness of 1-3/8″ to 1-7/8″, ensuring both security and durability.
Trilogy T3 Mortise Lock
Pushbutton Classroom Mortise Lock, with Prox Reader, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, Left Hand or Right Hand Reverse, Satin Chrome
PDL3500 Series mortise lock with built in HID prox reader, similar to DL3500 Series, but with: 2000 user codes (3-6 digits) and/or HID prox cards/fobs Multilevel security – Master; manager; supervisor; basic users Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or prox enroller tool PC programming/reporting Quick passage mode (without being in program mode) Program data transferred to lock via AL-PCI2 or AL-DTMIII 5AA battery-pak operated; 75,000 cycles, typ. 5 Architectural finishes Weatherproof -31deg to +151degF (-35deg to +66degC)
Trilogy Mortise: High security digital locks.
Trilogy high security mortise locks with and without prox DL3500 Series Mortise Locks 300 User codes.
- 300 User codes: Master, manager, supervisor & basic users
- Fingertip or Windows PC-programmable
- Real time clock enables up to 500 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typical and low-battery alert
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Attributes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: Mortise Cylinder
Door Thickness: 1-3/8″ to 1-7/8″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Grade: Grade 1
Installation: Commercial
Keypad Type: Electronic
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Proximity Keypad Trim
Pack Height: 4.88″
Pack Length: 13″
Pack Qty: 1
Pack Volume: 728.81 in³
Pack Width: 11.5″
Power: Battery Pack
Programmer: Optional
Reader Technology: 125kHz Proximity with Keypad
Series: DL3500 Mortise Pin Locks
Series Name: Trilogy
Ship Weight: 12.2 lbs.
Software: Optional
Std Strike Type: Mortise Strike
Subtype: Mortise Locks with Trim
Type: Integrated and Pushbutton
Unit of Measure: Each
Upc: 7.85E+11
Users: 300
Resources
- DL3500 & DL3500EX Programming Instructions
- DL3500 Door Template
- EC Declaration of Conformity for the DL3500 Series Mortise Lock
- UL Single-Point Locks or Latches – Model DL3500
- UL Single-Point Locks or Latches Certified For Canada – Model DL3500
- What’s in the Box?DL3500CR
