Track Stopper Slido D-Line11 Set by Hafele for Sliding and Folding Walls

Description

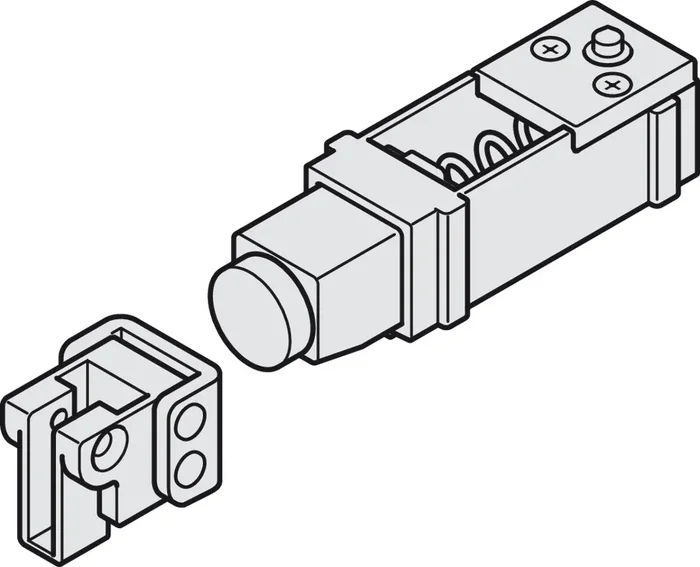

Hafele 940.42.310 Slido D-Line11 Track Stopper Set for 50P-120P, 50C-120C, 50I-120I

Hafele 940.42.310 Track Stopper is designed to enhance the functionality of your Slido Classic sliding door systems, accommodating door weights up to 50 kg. This innovative track stopper is compatible with a range of sliding door fittings, including models 40-L to 120-L, 40-P to 120-P, and 40-O to 120-O, ensuring a versatile application for both wooden and glass doors. Equipped with magnetic retention, the track stopper not only simplifies access but also holds the door securely in the open position. The push-to-open mechanism allows the door to be easily released with a gentle tap, making it ideal for installations where flush pulls are necessary. For optimal performance, a clearance of 20 mm (25/32″) between the door edge and the structure is required. Installation is straightforward: simply insert the stopper into the upper track and secure it with a fixing screw. This track stopper is a perfect replacement for pocket door edge pulls, providing a seamless solution for modern sliding door applications. Please note that it is not suitable for use with soft and self-closing mechanisms. Enhance your sliding door experience with Hafele’s 940.42.310 Track Stopper, where functionality meets style.

Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I

for Slido Classic 40-L to 120-L, Slido Classic 40-J to 120-J, Slido Classic 40-N to 120-N, 40-O to 120 O, Slido Classic 40-P to 120-P, Slido Classic 40-I to 120-I sliding door fittings, Door weight: 40 kg, with magnetic pull

For Slido Classic 40-P to 120-P and 40-O to 120-O sliding door fittings Replaces the pocket door edge pull; simply press on the edge of the sliding door and the spring of the impact dampener will push the sliding door far enough out so you can reach the flush pulls The impact dampener is simply inserted on one end of the upper track and fixed in place with a set screw For proper function of the impact dampener, a clearance of 20mm (25/32″) between the edge of the door and the structure must be provided

Not suitable for use in combination with soft and self closing mechanism. Plan cut-out dimensions for glass preparation accordingly

Attributes

Area of application: for wooden and glass sliding doors

Equipped with: Magnetic retention

For door weight: ≤50 kg

Functionality: The Push-to-Open soft closing mechanism replaces the sprung handle with sliding doors that run in walls. The door bounces out of the cavity after tapping it slightly so that the handle (depending on the mounting position) can be reached. With the version with the track stopper with magnetic retention, the door is also held in the open position.

Installation: The Push-to-Open track stopper is inserted into the running track from the front edge and fixed with the fixing screw. A wall distance of min. 20 mm must be provided in order to ensure the functionality of the soft closing mechanism. Please note the installation drawings for the respective sliding door models.

Product type: Track Stopper

Suitable for: Häfele Slido D-Line11 P, D-Line11 C , D-Line11 I, D-Line11 J, D-Line11 L

Resources

• CAD data
• Installation instructions
• TCH_Architectural_Hardware_ 2022 | Page 1.30
• installation instructions for Slido track stopper
