Description

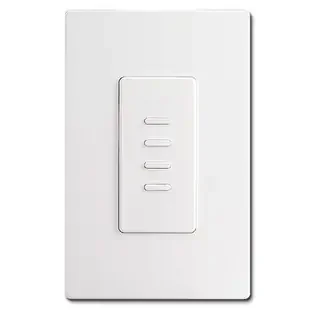

Touchplate Ultra series white quadruple button control stations feature a contemporary Decora look, an option preferred when upgrading current low voltage system. Includes entire unit consisting of the sub mounting plate, switches and screwless cover plate.
Features
- 2 wire low voltage system
- 1 amp at 28 volts contact rating
- 4 momentary contact switches; dry contact
- 4-7/8″ high x 3-1/8″ wide by 1/4″ deep cover plate
- 4-5/8″ high x 2-13/16″ wide sub plate
- sub plate has screw hole placement of 3-9/32″
- just want to buy the switch? – Ultra 4-button low voltage light switch
- includes two 1″ screws
- satin white
- made in USA
- previous part number ULT-4B-0L-WHT
Find more Low Voltage Wall Plates
Installation Tips
Add a free Touch Plate Ultra Switch Wiring Guide to your cart if using with Touch Plate brand relays.
For use with non-Touch Plate relays (GE, Remcon, Bryant or Sierra): This 2-wire low voltage 4 button switch unit can be used to replace a 3-wire low voltage 2 switch unit by Sierra, GE, Bryant or Remcon. Be sure to order the 3 wire to 2 wire Touch Plate conversion guide, which will then be included free of charge.
