Description

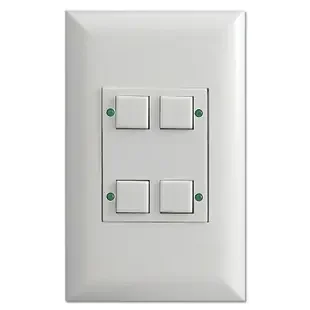

Original four button Touch-Plate Classic LED switch unit conveniently includes the necessary devices, switch plate, mounting strap and screws for a quick and simple installation. Green LED lights illuminate when the lighting location the switch is controlling is on. Great visual reminder to turn off lights when not in use.
Features
- 2 wire low voltage system
- 1 amp @ 28 volts switch contact rating
- 4 momentary contact switches; dry contact
- 4-1/2″ x 2-3/4″ plastic screwless switchplate
- 2″ x 1-9/16″ switch opening holes
- 3-9/32″ screw hole spacing in metal bracket
- four 1″ mounting screws
- pilot light with 4 green or blue LED bulbs
- replaces CLA-4B-4L, CC-4 and CCN4 Touchplate units
- CLAS1-0404A-WHT by Touch Plate, satin warm white
- includes wiring instruction guide
- made in USA
- cannot be used side by side in a 2-gang box: instead order a Classic 8-button LED control station or larger
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched get the right tightness to comfortably hold the covers on. Carefully use pliers until that is achieved.
Find more devices, switch plates, transverters and relays at Touch-Plate Low Voltage Lighting Controls
