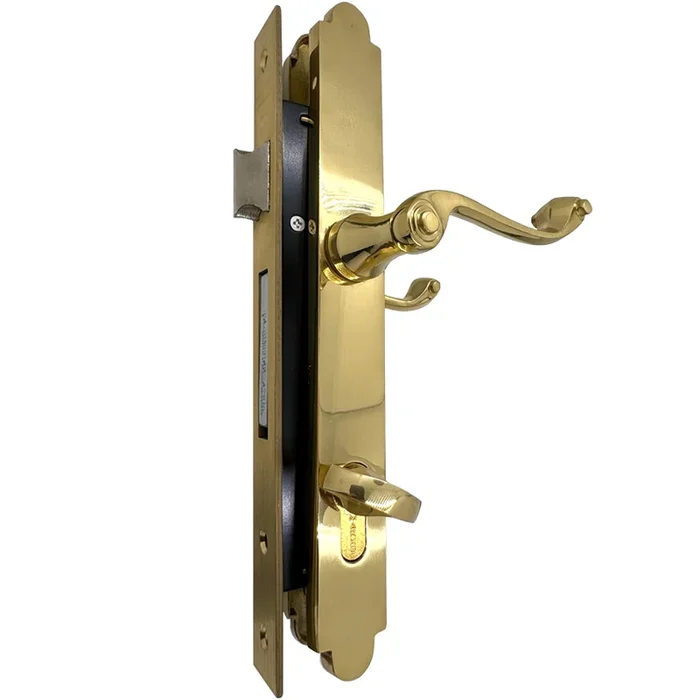

ThinLine Entry Cylinder X Cylinder – Marks A Keyway, 5 Pin, Bright Brass

Description

Marks Hardware 2750C/3RHR ThinLine Entry Cylinder, 5 Pin, Right Hand Reverse, Bright Brass 605/US3

Marks Hardware 2750C/3RHR ThinLine Entry Cylinder X Cylinder combines reliability and elegance, making it an excellent choice for enhancing security in residential and commercial spaces. Featuring a Marks “A” keyway, this 5-pin cylinder comes keyed alike with two keys for added convenience. The right-hand reverse design ensures a seamless fit for your entryway needs. Constructed with a robust thru-bolted solid brass trim, the 2750C/3RHR boasts a stunning bright brass finish that not only enhances its aesthetic appeal but also offers durability. The 1″ bolt throw and ½” latch projection guarantee effective locking mechanisms, while the spring-loaded captivated spindles provide smooth operation and increased security. This entry cylinder is designed for mortise locks with a reversible 1″ backset, making installation straightforward for professionals and knowledgeable homeowners alike. Additionally, the lifetime mechanical warranty underscores the commitment to quality that Marks Hardware is known for. Whether you opt for the entrance cylinder with a turnpiece or the double cylinder configuration, you can trust this product to deliver exceptional performance. With its ornamental iron escutcheon and elegant design, the ThinLine series enhances any entryway while providing peace of mind. Choose Marks Hardware for security solutions that blend functionality with style.

ThinLine Entry Cylinder X Cylinder, Marks A Keyway, 5 Pin, Right Hand Reverse, 605/US3 Bright Brass

Notice: The info below is not item specific.

Marks USA has been a primary manufacturer of ornamental iron storm door locks for many years. During that time, many innovative improvements were developed to increase the reliability and ease of installation. Innovations includes the “uni-lock” model with single screw assembly, elimination of threaded swivel spindles in favor of the more secure thru-bolted design, helper springs in lever-rose sets, and steel hubs for greater endurance.

Features:

• Lifetime mechanical warranty
• Thru-bolted, solid brass trim

Specifications:

• Thru-bolted solid brass trim assemblies
• Spring loaded captivated spindles
• Reversible mortise lock 1″ backset
• 1″ bolt, 1/2″ latch projection
• Cylinder: Marks “A” keyway, 5 pin w/ 2 keys; keyed alike – 6

Functions:

• Keyed with Deadbolt:
• B: Entrance cylinder x turnpiece
• C: Entrance double cylinder
• Dummy Trim: DT: Full dummy

Finishes:

• 3 – Bright brass
• 10B – Dark bronze
• 26D – Satin chrome

Attributes

Alternate Codes: 113130, 2750C/3RHR, 2750C3RHR

Bolt Throw: 1″

Category: Lock Sets

Cylinder Type: Marks Conventional

Door Application: Mortise Locks

Finish Code: 605

Finish Color: Polished Brass

Function: Entrance, Keyed Single Cylinder, With Deadbolt

Handing: Field Reversible, Right Handed Reverse

Keyway: Marks A

Latch Throw: 1/2″

Mechanical Option: Spring Loaded Captivated Spindles

Mounting Type: Thru-Bolt

Rose/ Escutcheon: Ornamental Iron Escutcheon

Series: ThinLine 2750
