Description
Richelieu 89K05025S TERNO HIDE FLUID Soft-Close Hardware Set
Richelieu 89K05025S TERNO HIDE FLUID Soft-Close Hardware Sets offer a sophisticated solution for sliding wood doors, accommodating weights of up to 352 lb (160 kg). These sets are designed for a seamless installation experience, featuring an easy mount suspension plate that simplifies setup. The innovative FLUID technology ensures two soft-close mechanisms operate smoothly, providing a low pull force for effortless door opening. Ideal for standard access doors, the hardware is suitable for doors with a height of up to 9 ft 10 in and a thickness ranging from 1 3/16 to 1 31/932 in. With a width capacity between 31 1/2 to 59 in, this system can adapt to various design needs while maintaining a sleek appearance. The upper roller position, combined with ball bearing rollers, enhances the door’s movement, allowing for straight sliding operations. Installation flexibility is a key feature, as all hardware sets operate on the same tracks, ensuring compatibility across different setups. Additionally, it’s crucial to use metric dimensions for accurate installation, with a specific groove cut required at the bottom of the door for the floor guide. Made from durable nylon, aluminum, and plastic, the Richelieu 89K05025S is engineered for both performance and longevity in your architectural projects.

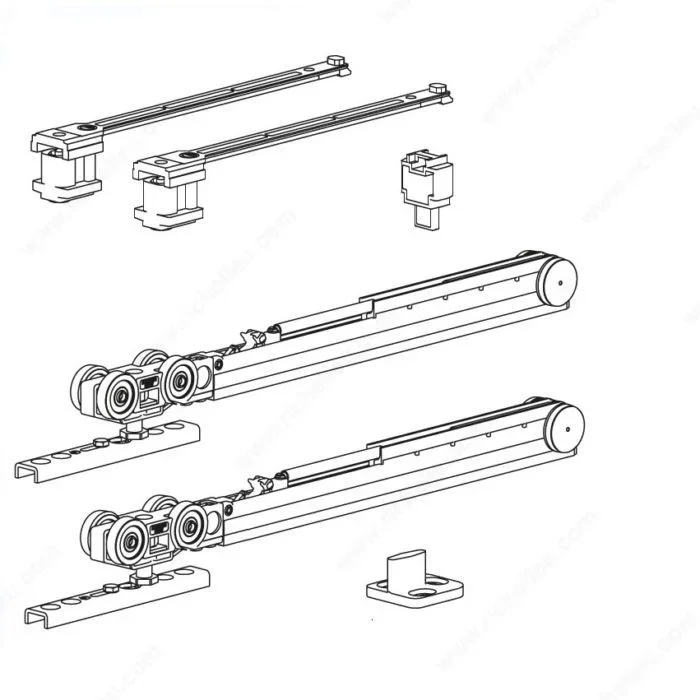

TERNO HIDE FLUID Soft-Close Hardware Sets
The TERNO HIDE FLUID soft-close hardware sets are designed for one wood door with weight capacities of 110 lb (50 kg), 176 lb (80 kg), and 352 lb (160 kg).
Features:
– Easy mount suspension plate
– Two soft-close mechanisms with FLUID technology
– Low pull force to open the door
– All hardware sets operate on the same tracks
– Simple and flexible installation
– Smooth operating
IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 1/4 in (6 mm) x 5/8 in (14 mm) at the bottom of the door for the floor guide.
Attributes
Ship via: No UPS – Common Carrier Only
Application: Standard Access Door
Detailed Door Movement: Single sliding
Door Height: 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 50 mm
Door Width: 800 to 1 500 mm
Load Capacity: 66.1 to 110 lb*
Manufacturing Material: Nylon, Aluminum, Plastic
Material: Plastic, Aluminum, Nylon
Number of Doors: 1
Product #: 89K05025S
Product number: 89K05025S
Product type: Hardware Set
Product №: 89K05025S
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID
Soft- Closing: Yes
Unit: Set
Weight Capacity per Door: 30 to 50 kg
Resources
- Instructions
- Line Art – HIDE Suspension Plate
- Line art
