TERNO ECLETTICA 80 FLUID – Sliding System Solutions by Richelieu

Description

Richelieu WEBKIT1243412 Terno Eclettica 80 Fluid

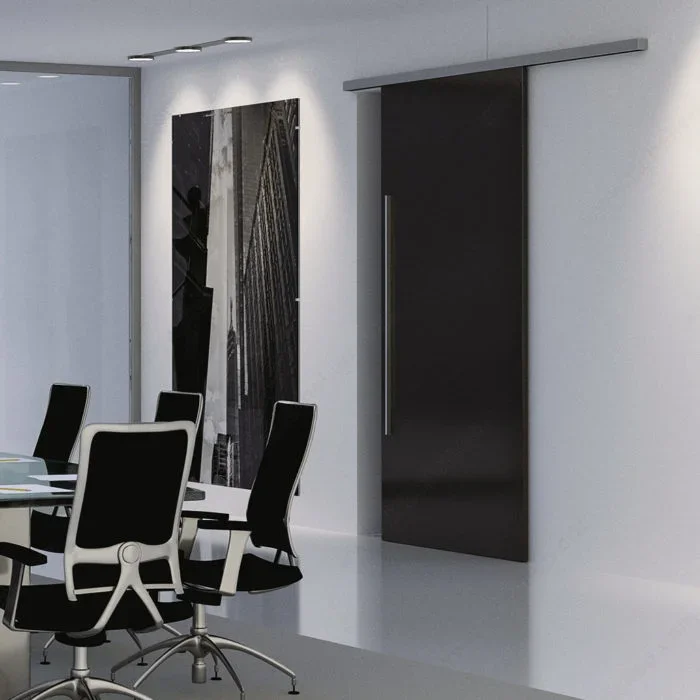

Richelieu WEBKIT1243412 TERNO ECLETTICA 80 FLUID is a top-of-the-line straight-sliding wood door system designed for doors weighing up to 80 kg. This innovative system features an automatic clip-on suspension bracket, ensuring a quick and toolless installation that saves time on the job. Choose from two hardware options: a combination of one soft close mechanism and one shock absorber, or dual soft-close mechanisms for enhanced usability. Compliant with ADA standards, this door system boasts a low pull force of just 2.1 kg, making it accessible for all. It offers versatile track mounting options, allowing for both ceiling and wall installations, while the clip-on anodized aluminum fascia is suitable for doors ranging from 35 mm to 45 mm in thickness. For added convenience, optional clips for wood fascia can be supplied by the contractor.The TERNO ECLETTICA 80 FLUID is ideal for high-volume residential and commercial projects, providing seamless access between rooms while maintaining aesthetic appeal. With a load capacity ranging from 112 to 176 lbs and accommodating door sizes from 29 1/8 to 49 1/4 inches in width, this system is engineered to meet the demands of modern spaces.

TERNO ECLETTICA 80 FLUID

TERNO ECLETTICA 80 FLUID Series is a standard straight-sliding wood door system for wood doors weighing up to 80 kg.

Features:
– Automatic clip-on suspension bracket for quick, toolless door installation
– Choice of hardware types:
a) 1 soft close mechanism and 1 shock absorber
b) 2 soft close mechanisms
– ADA / Barrier-Free compliant with a low pull force of 2.1 kg
– Track options for ceiling mount and wall mount
– Clip-on anodized aluminum fascia for 35 mm or 45 mm thick doors
– Optional clips for wood fascia supplied by the contractor

The TERNO ECLETTICA 80 FLUID Series is an ideal solution for high-volume residential and commercial projects for access doors between rooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchase separately to avoid cutting a groove.

Attributes

Ship via: No UPS – Common Carrier Only

Adjustable: Yes

Brand: Eclettica

Brand Model: Terno Eclettica

Detailed Door Movement: Single sliding

Door Height: 1 800 to 3 000 mm

Door Installation: Top Hung

Door Material: Wood

Door Movement: Straight Sliding

Door Thickness: 30 to 55 mm

Door Width: 740 to 1 250 mm

Groove Depth: 14 mm

Groove Width at the Bottom of Door: 6 mm

Length – Overall Dimensions: 98 3/8 in*

Load Capacity: 112 to 176 lb*

Manufacturing Material: Aluminum

Number of Doors: 1

Overall Length: 2 500 mm

Product #: WEBKIT1243412

Product №: WEBKIT1243412

Roller Position: Upper

Roller Type: Ball Bearing

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Soft- Close Type: Two Soft-close

Soft- Closing: Yes

Track Material: Anodized Aluminum

Track Mounting: Ceiling Mount

Weight Capacity per Door: 51 to 80 kg
