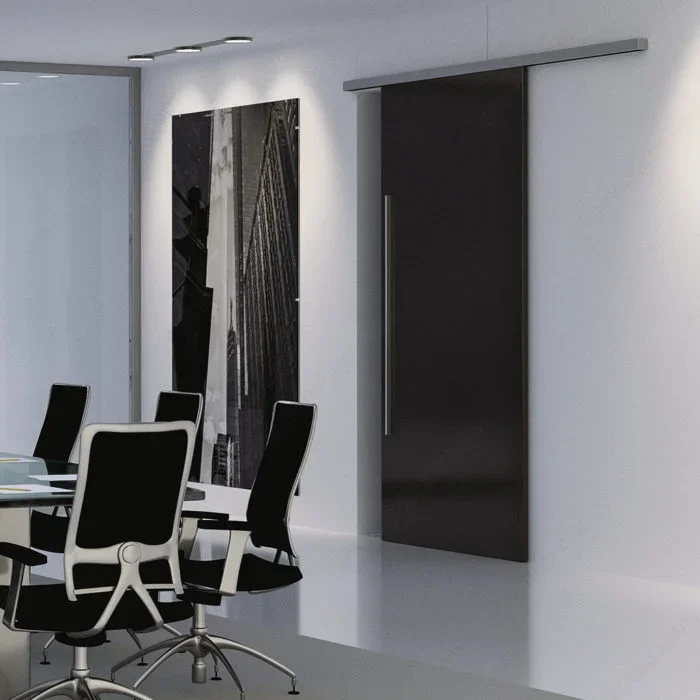

TERNO ECLETTICA 120 FLUID by Richelieu – Premium Sliding System Solution

Description

Richelieu WEBKIT1243423 Terno Eclettica 120 Fluid Lighting

Richelieu WEBKIT1243423 TERNO ECLETTICA 120 FLUID is a sophisticated straight-sliding door system designed for wood doors weighing up to 120 kg. Ideal for both residential and commercial applications, this system combines functionality with elegant design, making it perfect for high-traffic areas. One of its standout features is the automatic clip-on suspension bracket, which allows for quick, toolless installation, greatly simplifying the setup process. The system offers flexibility with various hardware options, including a choice between one soft-close mechanism with a shock absorber or two soft-close mechanisms for enhanced usability. It is ADA compliant, boasting a low pull force of just 3.7 kg, making it accessible for everyone. This top-hung system supports door heights from 70 7/8 to 118 inches and accommodates door thicknesses ranging from 1 3/16 to 1 25/32 inches. With a load capacity of 265 lb and the option for both ceiling and wall-mounted tracks, it adapts seamlessly to your space. The included clip-on anodized aluminum fascia enhances the aesthetic, while optional clips for wood fascia are available for customization. For optimal performance, a groove is required at the bottom of the door, ensuring smooth operation. The TERNO ECLETTICA 120 FLUID is a reliable choice for achieving a modern look while maintaining ease of access.

TERNO ECLETTICA 120 FLUID

TERNO ECLETTICA 120 FLUID Series is a standard straight-sliding wood door system for wood doors weighing up to 120 kg.

Features:
– Automatic clip-on suspension bracket for quick toolless door installation
– Choose from a collection of hardware types:
a) 1 soft close mechanism and 1 shock absorber
b) 2 soft close mechanisms
– ADA / Barrier-Free compliant with a low pull force of 3.7 kg
– Track options for ceiling mount and wall mount
– Clip-on anodized aluminum fascia for 35 mm or 45 mm thick doors
– Optional clips for wood fascia supplied by the contractor

The TERNO ECLETTICA 120 FLUID Series is an ideal solution for high-volume residential and commercial projects as access doors between rooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid cutting a groove.

Attributes

Ship via: No UPS – Common Carrier Only

Adjustable: Yes

Brand: Eclettica

Brand Model: Terno Eclettica

Detailed Door Movement: Single sliding

Door Height: 1 800 to 3 000 mm

Door Installation: Top Hung

Door Material: Wood

Door Movement: Straight Sliding

Door Thickness: 30 to 45 mm

Door Width: 800 to 1 000 mm

Function: Sliding Door

Groove Depth: 14 mm

Groove Needed for Guiding System: Yes

Groove Width at the Bottom of Door: 6 mm

Length – Overall Dimensions: 78 3/4 in*

Load Capacity: 265 lb*

Number of Doors: 1

Overall Length: 2 000 mm

Product #: WEBKIT1243423

Product №: WEBKIT1243423

Roller Position: Upper

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Soft- Close Type: Two Soft-close

Soft- Closing: Yes

Track Mounting: Wall Mount

Weight Capacity per Door: 120 kg
