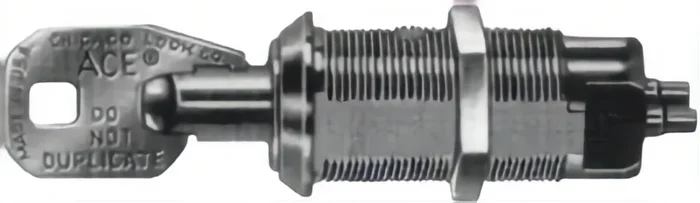

Switch Lock Ace Solder Terminal by Compx Security Products

Description

Compx C4073-2DC-KD Switch Lock Ace Solder Terminal

Compx Security Products C4073-2DC-KD Switch Lock Ace Solder Terminal offers a robust solution for your locking needs, combining functionality with reliability. This single pole, single throw (SPST) switch features an Ace II® Lock Assembly, allowing for seamless operation by manually rotating the key 90° clockwise from the open to closed position.Designed for versatility, the maintaining contact switch ensures consistent performance, while the momentary contact switch features a spring return that resets after the key is turned. With a contact configuration capable of handling up to 7 amps at 28 VAC/VDC, this lock is suited for various applications. The C4073-2DC-KD boasts an impressive electrical life of 6,000 cycles at maximum load, making it a durable choice for frequent use. The lock features a bright chrome finish that not only enhances aesthetics but also provides added protection against wear. Each pack includes two keys, ensuring you have a spare for easy access. Please note that master keying is not available for this model. With a contact resistance of just 50 milli ohms, this switch lock combines strength, reliability, and ease of use, ideal for both professionals and discerning homeowners seeking superior security solutions.

Switch Lock Ace Solder Terminal

Notice: The info below is not item specific.

Single Pole, Single Throw:

• Ace II® Lock Assembly.
• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Contact configuration: SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome finish.
• Two Keys per pack.
• Master – Keying not available.
• D137-CLC key blank.

Lock No.	Key pull	Contact	KA Codes	KD Changes	Box QTY
C4073-1DC	OFF Only	Maintaining	PL927	200	10
C4073-2DC	OFF & ON	Maintaining	PL910	200	10
C4073-70DC	OFF only	Momentary	PL927	200	10

• Double Bitted Assembly With Eleven Criss-Cross Blade Tumblers.
• Lock operation same as 4073 Series.
• Contact configuration:SPST
• 7 amps @ 28 VAC/VDC
• Electrical Life: 6,000 cycles @ Max Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Bright Chrome Finish
• Two keys per lock.
• Master &3151; Keying not available.
• DK-4 key blank

Lock No.	Key pull	Contact	KA Codes	KD Changes	Box QTY
C2174-1DC	OFF Only	Maintaining	2001, 2007	200	10
C2174-2DC	OFF & ON	Maintaining	2001, 2007, 2387	200	10
C2174-70DC	OFF only	Momentary	2001, 2007, 2126	200	10

Features

• Maintaining contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.
• Bright Chrome finish.
• Master – Keying not available.
• Two Keys per pack.
• Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position.
• Electrical Life: 6,000 cycles @ Max. Load.
• Contact Resistance: 50 milli ohms initial maximum.
• Ace II® Lock Assembly.
• Contact configuration: SPST
• D137-CLC key blank.
• 7 amps @ 28 VAC/VDC

Attributes

Alternate Codes: 103195, 441576, C40732DCKD, C4073-2DC-KD, C4073-2DCKD, C40732KD, C4073-2KD, COMC4073-2DCKD, COMC4073-2KD

Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets

Lock Style: Switch Lock

Resources

• Cut Sheet
