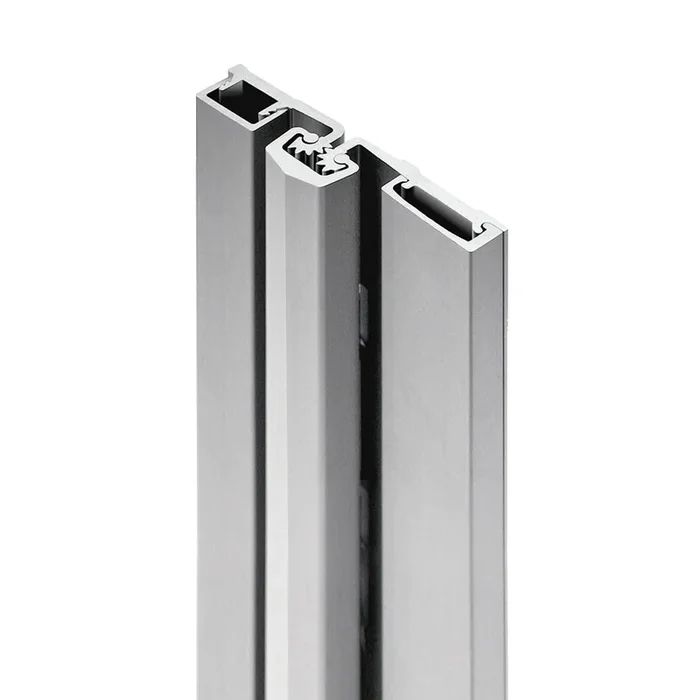

Select Products SL21-95-CL-HD600 Swing Clear Heavy Duty Continuous Hinge, 95in, Up to 600lb, High Frequency
SELECT Products Limited SL21-95-CL-HD600 Swing Clear Heavy Duty Full Surface Geared Continuous Hinge offers exceptional strength and reliability, making it an ideal choice for high-frequency applications. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings, ensuring smooth operation for doors weighing up to 600 lbs.Designed for 1-3/8″ to 1-3/4″ doors, it accommodates longer barrel nuts for thicker doors between 2″ and 2-1/4″. With a maximum door width of 48″ in 16-gauge hollow metal or 1/8″ aluminum, the SL21 hinge is perfect for robust installations. It is available in standard lengths of 83″, 85″, 95″, and 120″, and comes stocked in clear or dark bronze anodized finishes, with custom options available upon request. Engineered for versatility, this hinge can be paired with various closers, including conventional overhead and concealed sliding arm options. However, pivot-type floor closers with conflicting center pivots must be replaced to ensure compatibility. The SL21-95-CL-HD600 also includes a specific screw count for secure installation: 11 door screws and 15 frame screws, ensuring a firm and durable fit. This hinge is a top-notch solution for those seeking performance and durability in commercial and industrial settings.
Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 95in, Up to 600lb. High Frequency, CL Clear
Notice: The info below is not item specific.
Features:
- Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
- Lengths: 83″, 85″, 95″ and 120″ lengths standard for nominal door heights.
- Load/Frequency Rating: For 1-3/8″ – 1-3/4″ doors standard; long barrel nuts available for 2″ – 2-1/4″ doors. 48″ max. door width in 16 gauge hollow metal (min.) or 1/8″ aluminum (min.).
- Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
- Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
- Finishes: All SL21 hinges are stocked in clear and dark bronze anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
- Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.
SL21 Hinge Screw Count:
| Hinge Length and Duty Rating | Door Screws | Frame Screws |
|---|---|---|
| 83″ HD300/HD600 | 10 | 14 |
| 85″ HD300/HD600 | 10 | 14 |
| 95″ HD300/HD600 | 11 | 15 |
| 120″ HD300/HD600 | 14 | 18 |
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: SL21-95-CL-HD600, SL2195CLHD600
Category: Continuous Hinges, Hinges
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
