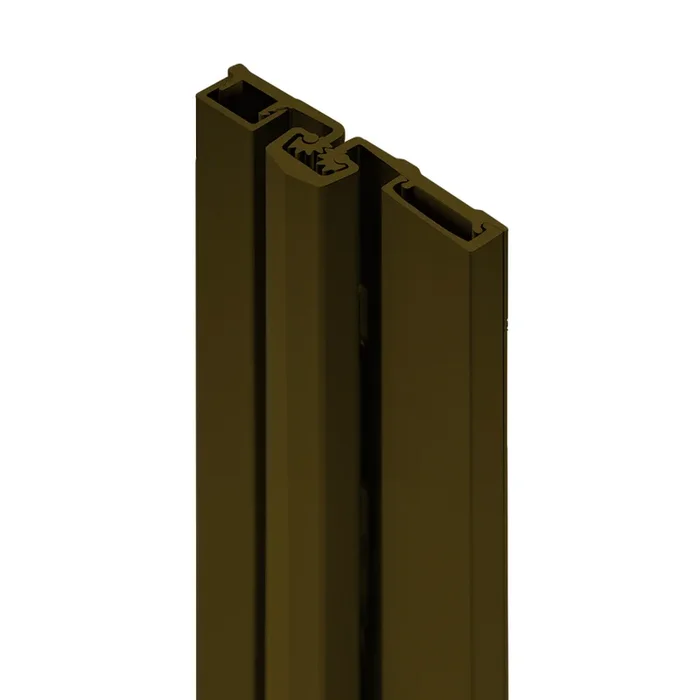

Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 95in, Up to 300lb, BR Dark Bronze

Description

Select Products SL21-95-BR-HD300 Heavy Duty 95in Swing Clear Geared Continuous Hinge, Up to 300lb, BR Bronze

SELECT Products Limited SL21-95-BR-HD300 Swing Clear Heavy Duty Full Surface Geared Continuous Hinge offers unparalleled durability and performance for high-frequency door applications. Constructed from extruded 6063 T6 aluminum alloy, this hinge features self-lubricating polyester thrust bearings that ensure smooth operation over time. Designed to support doors weighing up to 300 lbs without the need for frame or door reinforcement, it is the ideal choice for both commercial and residential settings. Available in standard lengths of 83″, 85″, 95″, and 120″, the SL21 hinge accommodates nominal door heights and fits 1-3/8″ to 1-3/4″ doors. For heavier doors, long barrel nuts can be utilized to extend compatibility to 2″ – 2-1/4″ doors, while maintaining a maximum door width of 48″ in 16 gauge hollow metal or 1/8″ aluminum.The finish is available in both clear and dark bronze anodized aluminum, with custom options upon request. However, note that field painting or anodizing will void the warranty. This hinge can be paired with various closers, including conventional overhead and concealed models, ensuring versatility in installation. Select the SL21-95-BR-HD300 for a reliable solution that meets the demands of high-traffic environments.

Swing Clear Heavy Duty Full Surface Geared Continuous Hinge, 95in, Up to 300lb. High Frequency, BR Dark Bronze

Notice: The info below is not item specific.

Features:

• Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
• Lengths: 83″, 85″, 95″ and 120″ lengths standard for nominal door heights.
• Load/Frequency Rating: For 1-3/8″ – 1-3/4″ doors standard; long barrel nuts available for 2″ – 2-1/4″ doors. 48″ max. door width in 16 gauge hollow metal (min.) or 1/8″ aluminum (min.).
• Heavy Duty 300: For high-frequency doors up to 300lb without frame or door reinforcement.
• Heavy Duty 600: For high-frequency doors up to 600lb Rivnuts are recommended in the frame when the door exceeds 450lb
• Finishes: All SL21 hinges are stocked in clear and dark bronze anodized aluminum. Custom anodized or painted finishes are available. Product painted or anodized in the field voids the SELECT hinge warranty.
• Closers: Conventional overhead surface, concealed sliding arm overhead or floor closers may be used with hinges. Pivot-type floor closers (with a fixed, conflicting center pivot) must be replaced.

SL21 Hinge Screw Count:

Hinge Length and Duty Rating	Door Screws	Frame Screws
83″ HD300/HD600	10	14
85″ HD300/HD600	10	14
95″ HD300/HD600	11	15
120″ HD300/HD600	14	18

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: SL21-95-BR-HD300, SL2195BRHD300

Category: Continuous Hinges, Hinges

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
