SVR Surface Vertical Rod Exit Device – 48in x 84in, Hex Dogging, Grade 1

Description

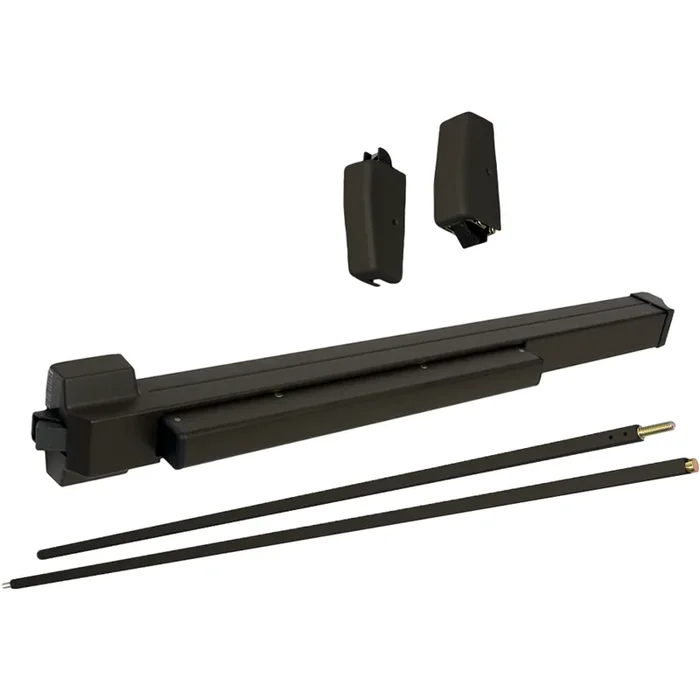

Von Duprin 2227EO-695-48 SVR Surface Vertical Rod Exit Device, Exit Only, 48in, Hex Dogging, Grade 1

Von Duprin 2227EO-695-48 SVR Surface Vertical Rod Exit Device offers a robust solution for secure exits on both single and double doors. This exit device is UL listed for panic exit hardware, ensuring reliability in emergency situations. With a Grade 1 rating according to ANSI A156.3 – 2008 standards, it is designed to fit stock hollow metal doors featuring 86 or 161 cutouts, accommodating door stiles as narrow as 3 5/8 inches. The device measures 48 inches in width and is suitable for standard door heights of 7 feet, with optional 3-foot extension rods available for doors up to 10 feet tall. Its non-handed design allows for easy installation on either side of the door, while the hex key dogging feature provides added security and convenience. Equipped with a deadlocking anti-friction latch bolt featuring a 5/8-inch throw, this exit device ensures that doors remain secure when closed. The sleek sprayed dark bronze finish not only enhances the aesthetic appeal but also provides durability in high-traffic areas. With options for multiple trim styles and electrified features, the Von Duprin 2227EO-695-48 is an ideal choice for any commercial setting that prioritizes safety and accessibility.

SVR Surface Vertical Rod Exit Device, Exit Only No Trim, 48in x 84in, Hex Dogging, Grade 1, 695/SP313 Sprayed Dark Bronze

Notice: The info below is not item specific.

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm) see minimum door opening chart in cut sheet
• 4′ (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7′ (2134 mm) standard door height. Note: 3′ extension rods available for door heights up to 10′ (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16″ (1011 mm)
• Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
• Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
• Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3′ Device:

• 25.875″ (657 mm):
• Stop height: 1⁄2″
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000″ (664 mm):
• Stop height: 5⁄8″
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim : 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze

Attributes

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 695

Finish Color: Dark Bronze, Sprayed Duranotic

Function: Exit Only

Grade: Grade 1

Manufacturer: Von Duprin

Series: 22

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Standard, Vertical Rod Bottom Strike, Vertical Rod Top Strike
