SVR Exit Device – Surface Vertical Rod Exit Device by Sargent

Description

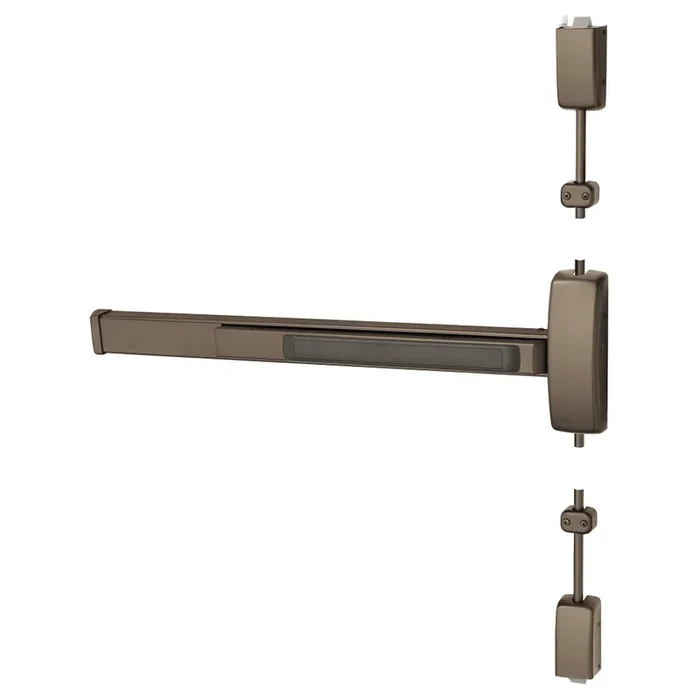

Sargent 56-8710F LHR 10B SVR Exit Device – Exit Only

Sargent 56-8710F LHR 10B SVR Exit Device, Exit Only, exemplifies robust security with its Grade 1 Surface Vertical Rod design. Specifically engineered for durability, this device is built for wide stile doors, featuring a 36″ device length and accommodating door heights up to 96″. Its electric latch retraction mechanism enhances convenience, ensuring smooth egress without compromising safety. Designed with a left-hand reverse handing, this exit device is perfect for commercial applications where reliability is paramount. The dark oxidized satin bronze oil rubbed finish not only adds an aesthetic appeal but also offers enhanced resistance to wear and tear. The Sargent 80 Series exit devices are renowned for their maintenance-free functionality, thanks to their modular construction and minimal moving parts, exceeding ANSI/BHMA Grade 1 standards for cycle and strength. The device includes two-point latching, adjustable through the center case, making it adaptable to various door styles and widths. It suits both wood and metal doors, with a thickness range of 1-3/4″ to 2-1/4″. Ideal for facilities needing dependable exit solutions, the Sargent 56-8710F combines simplicity, strength, and innovative design, ensuring your building’s safety is in capable hands.

SVR Exit Device, Exit Only

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Exit Only, Electric Latch Retraction, Less Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Less Dogging

Door Height: 96″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 33″ to 36″

Electric Options: Electric Latch Retraction

Finish: 613/US10B

Finish Family: Dark Bronze

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Exit Only

Minimum Stile Size: 3-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1.0

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Reversible: No

Series: 8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 15 lbs.

Strike Bottom: 624.0

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 646.0

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals – Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions – Exit Devices
