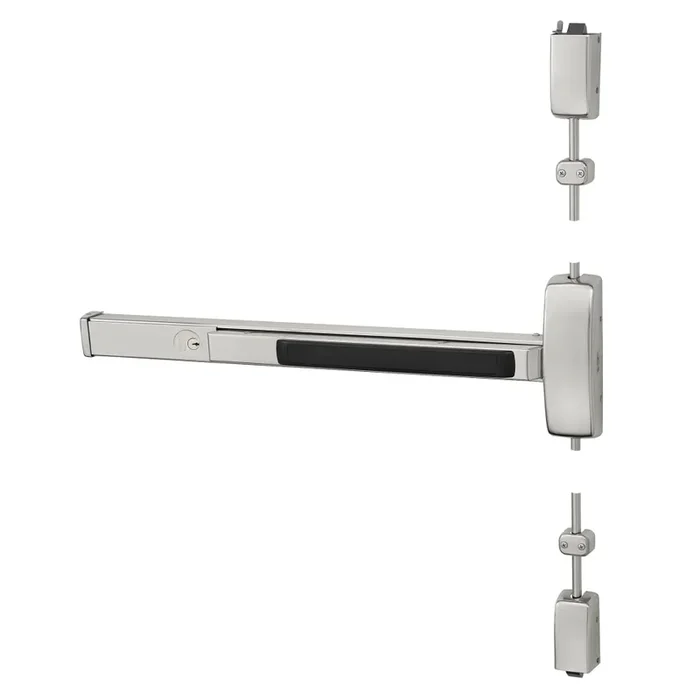

SVR Exit Device – Sargent Surface Vertical Rod Exit Device

Description

Sargent 16-8710F ETB LHR 32D SVR Exit Device – Exit Only

Sargent 16-8710F ETB LHR 32D SVR Exit Device, Exit Only offers a robust security solution ideal for both commercial and residential environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad design, making it user-friendly while ensuring compliance with ADA standards. With a length of 36 inches and compatibility for 96-inch door heights, this exit device is engineered for durability and ease of use. The Sargent 80 Series exit devices are renowned for their modular construction, which minimizes maintenance while exceeding ANSI/BHMA Grade 1 requirements for cycle and strength. The two-point latching mechanism is adjustable through the center case, providing a customizable fit for various door types, including wood and metal doors ranging from 1-3/4″ to 2-1/4″ in thickness. Included cylinder dogging enhances functionality, and the dummy function provides an elegant aesthetic without compromising security. This model is designed for left-hand reverse installation and is finished in a sleek satin stainless steel (US32D), ensuring long-lasting performance and style. With options for unique applications such as delayed egress and electric latch retraction, the Sargent 16-8710F ETB exit device is your trusted choice for reliable access control.

SVR Exit Device, Exit Only

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Dummy Function, B Lever with Escutcheon, Cylinder Dogging, Cylinder Included, Satin Stainless Steel Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Cylinder Dogging, Cylinder Included

Door Height: 96″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 33″ to 36″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Dummy

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Reversible: No

Series: 8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 18 lbs.

Strike Bottom: 624

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 646

Trim Design: Lever with Escutcheon

Trim Part No: 710 ETB LHRB 26D

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals – Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions – Exit Devices
