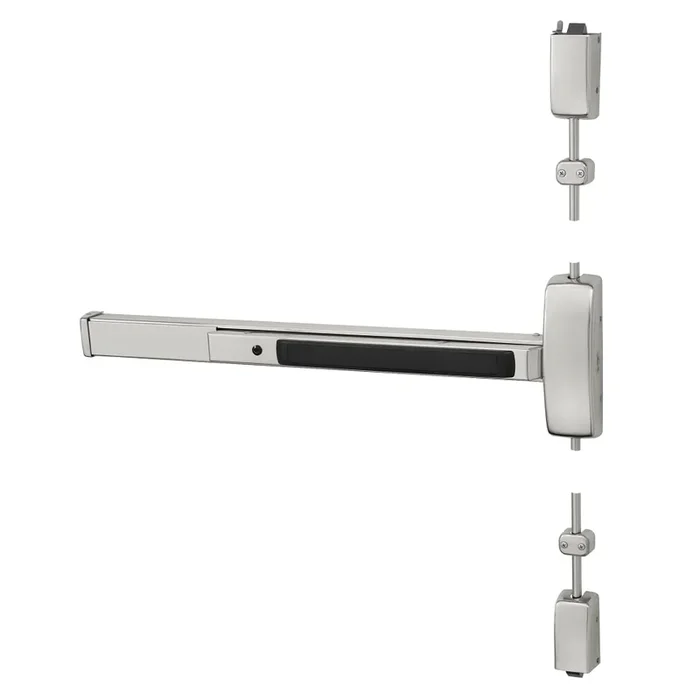

SVR Exit Device – Sargent Storeroom Vertical Rod Exit Device

Description

Sargent 55-8706F RHR 32D SVR Storeroom Exit Device

Sargent 55-8706F RHR 32D SVR Exit Device, Storeroom offers robust security and reliability, making it a prime choice for commercial environments. This Grade 1 surface vertical rod exit device features a wide stile pushpad and is designed for doors up to 96 inches in height. With its storeroom function, it ensures that the door remains locked from the outside while allowing for easy egress from the inside. Constructed to exceed ANSI/BHMA Grade 1 standards for cycle and strength, the Sargent 80 Series devices are engineered for durability and maintenance-free operation. The modular design minimizes moving parts, simplifying installation and enhancing longevity. Its adjustable two-point latching system provides additional security, and the hex key dogging feature allows for convenient operation. This exit device accommodates wood or metal doors with a thickness of 1-3/4″ to 2-1/4″ and is suitable for door widths ranging from 33″ to 36″. Finished in satin stainless steel, it combines aesthetics with functionality. The device is compliant with UL10C and UL305 standards, assuring safety in emergency situations. With a limited five-year warranty, the Sargent 55-8706F is a smart investment in your building’s security infrastructure.

SVR Exit Device, Storeroom

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Storeroom Function, Request to Exit Switch, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 96″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 33″ to 36″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right Hand Reverse

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Storeroom

Minimum Stile Size: 3-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1.0

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Reversible: No

Series: 8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 15 lbs.

Strike Bottom: 624.0

Subtype: Surface Vertical Rod Exit Devices

Switch Type: Request to Exit

Top Strike: 646.0

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each
