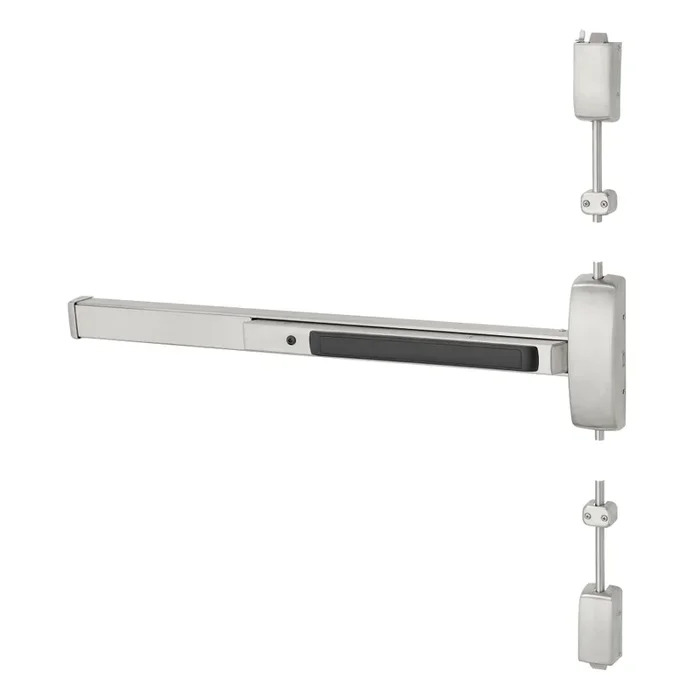

SVR Exit Device, Passage by Sargent – Surface Vertical Rod Exit Device

Description

Sargent 8715G RHR 32D SVR Exit Device with Passage Instructions

Sargent 8715G RHR 32D SVR Exit Device, Passage offers an exceptional blend of security and functionality for commercial settings. This Grade 1 Surface Vertical Rod Exit Device is designed with a wide stile pushpad, accommodating door heights of 96 inches and widths ranging from 43 to 48 inches, ensuring a perfect fit for your needs. Engineered for durability, the device exceeds ANSI/BHMA Grade 1 standards, providing reliable performance throughout the life of the building. The Sargent 8715G features hex key dogging for easy operation and two-point latching that is adjustable through the center case, enhancing its user-friendly design. Constructed from satin stainless steel, it presents a sleek, matte finish that complements any aesthetic while ensuring resilience against wear. Designed for wood or metal doors with a thickness of 1-3/4 to 2-1/4 inches, this exit device is a versatile solution for various applications. With a limited five-year warranty, you can trust in its quality and longevity. The Sargent 8715G RHR is not only a practical choice but also a smart investment in security, making it ideal for high-traffic areas requiring reliable exit solutions.

SVR Exit Device, Passage

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 48″ Device, 96″ Door Height, Passage Function, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 48″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 96″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 43″ to 48″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right Hand Reverse

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Passage

Minimum Stile Size: 3-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 51″

Pack Qty: 1.0

Pack Volume: 2295 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Reversible: No

Series: 8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 15 lbs.

Strike Bottom: 624.0

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 646.0

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals – Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions – Exit Devices
