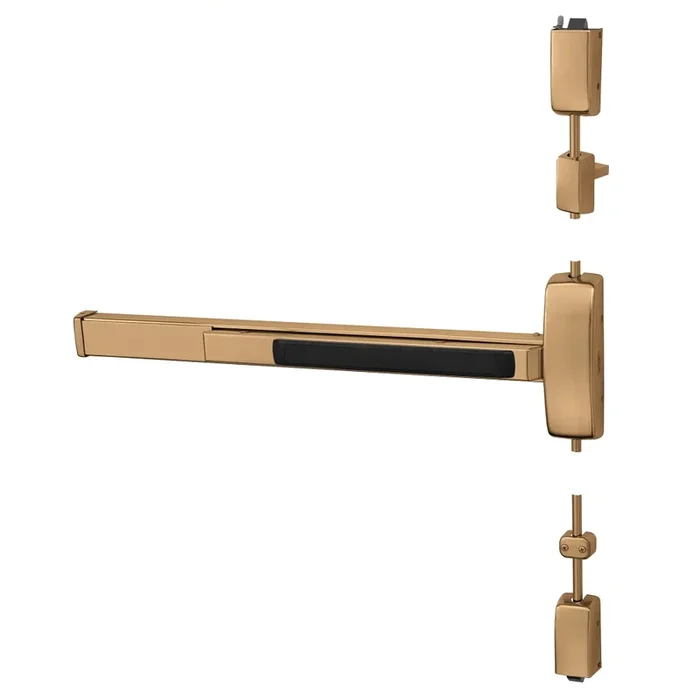

SVR Exit Device, Passage by Sargent – Reliable Surface Vertical Rod Exit Device

Description

Sargent 12-8715F ETL LHR 10 SVR Exit Device with Passage Instructions

Sargent 12-8715F ETL LHR 10 SVR Exit Device, Passage offers a robust solution for high-traffic environments where security and ease of use are paramount. Designed as a Grade 1 Surface Vertical Rod Exit Device, this model features a wide stile pushpad and accommodates doors up to 36 inches wide and 96 inches in height. Its passage function and left-hand reverse configuration make it a versatile choice for various applications. Constructed with durability in mind, the Sargent 80 Series exceeds ANSI/BHMA Grade 1 standards, ensuring reliability throughout the life of the building. This exit device includes two-point latching and an adjustable center case, allowing for easy installation and maintenance. The sleek satin bronze clear-coated finish not only enhances aesthetic appeal but also resists wear over time. Suitable for both wood and metal doors with a thickness of 1-3/4 inches to 2-1/4 inches, the Sargent 12-8715F is designed for commercial use, offering ADA compliance. With a fire rating of 3 hours and modular construction, this exit device is a smart investment for any facility looking to combine simplicity with security. Experience peace of mind and efficient egress with this dependable exit device.

SVR Exit Device, Passage

Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Fire-Rated Device, 96″ Door Height, Passage Function, L Lever with Escutcheon, Less Dogging, Satin Bronze Clear Coated Finish, Left Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

Has two point latching and is adjustable through the center case.

Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.

• Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
• Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Less Dogging

Door Height: 96″

Door Material: Metal or Wood

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 33″ to 36″

Finish: 612/US10

Finish Family: Matte Bronze

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Passage

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 6″

Pack Length: 38″

Pack Qty: 1.0

Pack Volume: 1710 in³

Pack Width: 7.5″

Physical Appearance: Wide Stile Pushpad

Reversible: No

Series: 8700 Series Surface Vertical Rod Exit Devices

Ship Weight: 18 lbs.

Strike Bottom: 655.0

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 646.0

Trim Design: Lever with Escutcheon

Trim Part No: 715 ETL LHRB 10

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each

Resources

• 12-HC8700 Top Case Parts List
• 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
• 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
• 43-Flush End Cap Rail Cutting Installation Instructions
• 55-Signal Switch for 80 Series Installation Instructions
• 56-Electric Latch Retraction Exit Device Sell Sheet
• 565 & 665 Metal End Cap Kit Installation Instructions
• 57-Delayed Action 80 Series Exit Device Installation Instructions
• 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
• 59-8700 Surface Vertical Rod Chassis Parts List
• 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
• 80 Series Brochure
• 816 Cylinder Dogging Kit Parts List
• 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
• 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
• AL- Alarmed Exit Device Installation Instructions
• Basic Fundamentals – Exit Devices
• Electric Dogging for 80 Series Installation Instructions
• Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
• NB-8700 ET Trim Template
• Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
• Video: 8700 Series Surface Vertical Rod Exit Device Installation
• Windstorm Solutions – Exit Devices
