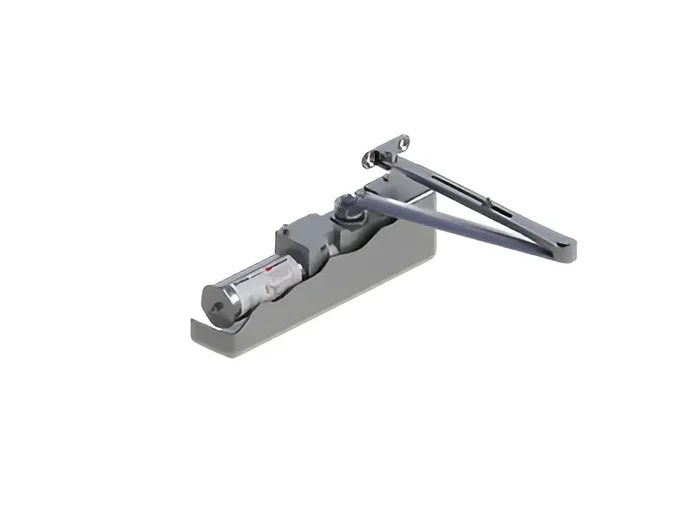

Surface Mount Heavy Duty Cast Iron Closer – Adjustable Spring Size 1-6

Description

Hager 5100 ALM Grade 1 Door Closer Adjustment 1-6 Alm

Features

• Adjustable backcheck, sweep, and latching valves- standard
• Precision-machined, heat-treated steel piston
• Door Thickness: 1-3/4″ (44 mm) – standard. 1-3/8″ – 2-1/4″ (36 mm – 57 mm) thick door – optional
• Springs:
• Handing: Non-handed
• One piece seamless steel spring tube
• Valves:
• Certifications: BHMA Certified ANSI A156.4, adjustable sizes 1-6
• Fasteners: Self-reaming, self-tapping wood and machine screws- Standard. Sex nuts and bolts- Standard.
• All valves are staked
• Maximum Door Weight: 330 lbs.
• Delayed action valve – optional
• Material: Cast iron, treated with rust inhibiting primer – standard
• Applications: Grade 1 heavy duty surface door closer adjustable sizes 1-6. Ideal for schools, hospitals, and other high-use environments
• Optional Brackets: Extra clearance parallel arm bracket – 5935 (2″). Extra heavy duty parallel arm support bracket – 5111
• Double heat-treated, steel-tempered springs

Attributes

Alternate Codes: 5100 ALM, 5100ALM

Category: Door Closers, Surface Mount Closers, Surface Mount Door Closers

Type: Door Closers
