Surface Closer STAT by LCN – High-Performance Door Closer

Description

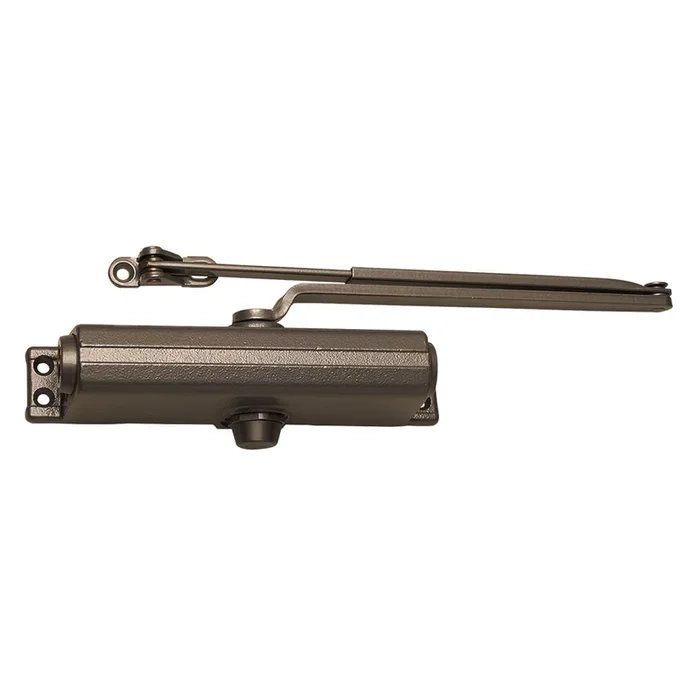

LCN 1261-REG 690 Surface Closer STAT

LCN 1261-REG 690 Surface Closer STAT delivers exceptional performance with its Grade 1 durability, making it an ideal choice for both commercial and residential applications. This surface door closer features a versatile regular arm design that allows for push or pull side mounting, accommodating both regular and top jamb installations. It supports a full 180-degree swing and is adjustable for spring sizes 1 to 5, ensuring compatibility with various door sizes. Crafted from cast iron, the LCN 1260 Series incorporates a robust 1-3/8 inch diameter piston and a heat-treated 5/8 inch diameter pinion journal for smooth operation. The non-handed design simplifies installation, while the peel-n-stick template with a common 3/4 inch x 9-1/16 inch mounting hole pattern streamlines setup. This model is designed to withstand all weather conditions, featuring all-weather fluid for reliable performance year-round. The statuary bronze finish adds a touch of elegance, making it suitable for any environment. The LCN 1261-REG also meets ADA requirements, ensuring accessibility for all. With a limited 20-year warranty, this door closer combines reliability, ease of use, and aesthetic appeal, making it a wise investment for any property.

Surface Closer STAT

Grade 1 Surface Door Closer, Regular Arm, Push or Pull Side Regular or Top Jamb Mounting, 180 Degree, Size 1 to 5, No Cover, All Weather Fluid, Statuary Bronze Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.4

Arm Type: Regular Arm

Baa Qualified: Yes

Base Material: Varies

Closer Size: 1 to 5

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: No

Degree Swing: 180 Deg.

Finish: 690/US20

Finish Family: Dark Bronze

Grade: Grade 1

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 20 Years

Mounting Group: Hydraulic

Mounting Location: Push or Pull Side

Mounting Style: Regular or Top Jamb

Origin: USA

Pack Qty: 1

Screw Type: Self-Reaming and Tapping

Series: 1260 Series Surface Mounted Closers

Ship Weight: 11 lbs.

Subtype: Surface Closers

Type: Surface

Ul Listing: UL10C

Unit of Measure: Each
