Surface Closer GLBLK by LCN – Reliable Door Closing Solution

Description

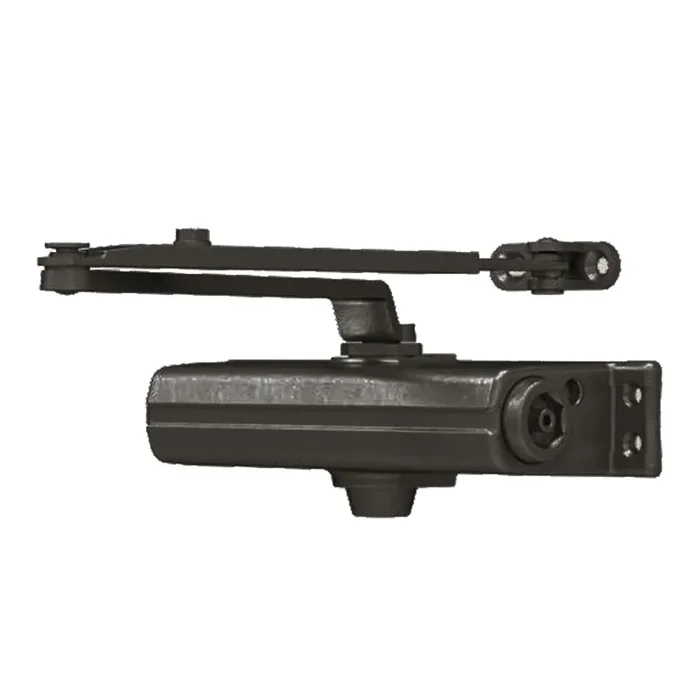

LCN 1261-CUSH 693 SLIM Surface Closer GLBLK

LCN 1261-CUSH 693 SLIM Surface Closer GLBLK is a Grade 1 surface door closer that combines functionality with a sleek design. Engineered for light to medium duty applications, this closer features a Cush-N-Stop arm and is versatile enough to accommodate a range of door sizes from spring size 1 to 5. With a 110-degree swing, it is ideal for both interior and exterior doors, meeting ADA requirements for accessibility. The non-handed design allows for easy installation on either right or left swinging doors, utilizing a peel-n-stick template for a hassle-free setup. It mounts efficiently to the most common commercial footprint, boasting a slim cover that enhances aesthetics without compromising durability. The all-weather fluid ensures reliable performance in varying environmental conditions, making it suitable for use in challenging climates. Constructed with a full complement bearing, a 1-3/8 inch diameter piston, and a heat-treated pinion journal, the LCN 1261-CUSH delivers strength and longevity. The closer is available in a striking black finish, complemented by optional custom powder coats for added personalization. Backed by a 20-year limited warranty, this closer is a dependable choice for commercial applications.

Surface Closer GLBLK

Grade 1 Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Degree, Size 1 to 5, Slim Cover, All Weather Fluid, Black Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.4

Arm Type: Cush Arm

Baa Qualified: Yes

Base Material: Varies

Closer Size: 1 to 5

Cold Weather Fluid: Yes

Commercial Residential: Commercial

Country of origin: USA

Cover: Slim Cover

Degree Swing: 110 Deg.

Finish: 693

Finish Family: Black

Grade: Grade 1

Handing: Non-Handed

Hold Open: No

Installation: Commercial

Limited Warranty: 20 Years

Mounting Group: Hydraulic

Mounting Location: Push Side

Mounting Style: Parallel Arm

Origin: USA

Pack Qty: 1

Pbs Options: 4925103

Screw Type: Self-Reaming and Tapping

Series: 1260 Series Surface Mounted Closers

Stop: Dead Stop

Subtype: Surface Closers

Type: Surface

Ul Listing: UL10C

Unit of Measure: Each

Resources

• 1000 Series Catalog
• 1260 Series Surface Mounted Closers Cut Sheet
• LCN 1000 Series Product Guide
• LCN 1000 Series Surface Mounted Closers Guide
• LCN 1260 Series Drop Plate Installation Guide
• LCN 1260 Series Quick Fix Bracket Installation Guide
• LCN 1261 CUSH Installation Guide
• LCN 1261 EDA Installation Guide
• LCN 1261 Series Installation Guide
• LCN 1261-62A Shoe Installation Guide
• LCN Closers & Auto Operators Installation Guide
• Von Duprin Finishes Chart
