Description

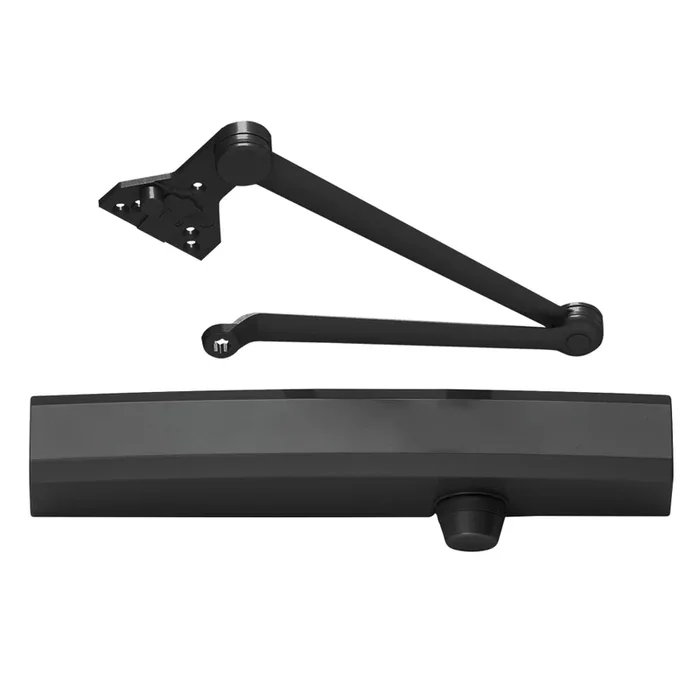

LCN 1450-CUSH 693 Surface Closer Global Black
LCN 1450-CUSH 693 Surface Closer GLBLK offers robust performance in a sleek design, making it an excellent choice for commercial settings. Constructed from Grade 1 cast aluminum, this surface-mounted closer is engineered for longevity and reliability, accommodating door sizes up to 48 inches for exterior use and 60 inches for interior applications. Its adjustable spring size ranges from 1 to 6, ensuring versatility for various traffic conditions. The 1450 Series features a double lever arm with a soffit stop, providing smooth operation and stability. With a slim plastic cover and a stylish black painted finish, it complements both aluminum storefronts and office interiors. The closer is non-handed, allowing for easy installation on either the push or pull side of doors. Designed with user convenience in mind, the LCN 1450 includes peel-n-stick templates for straightforward installation and a universal screw pack. It is equipped with adjustable back check and is suitable for all weather conditions, thanks to its all-weather fluid. Supported by a 25-year limited warranty, this closer not only meets ANSI A156.4 standards but also ensures ADA compliance. Choose the LCN 1450-CUSH for a durable, functional, and visually appealing door control solution.
Surface Closer GLBLK
Grade 1 Cast Aluminum Surface Mount Closer, Size 1-6 Adjustable, Double Lever Arm, Soffit Stop, Non-Handed, Slim Plastic Cover, Black Painted Finish
The LCN Cast Aluminum Series closers were specially designed to deliver consistent, dependable, long lasting performance while offering high quality, effective solutions. This series of closers features a cast aluminum body, full compliment bearing, peel-n-stick templates and are offered in six standard finishes, as well as custom colors. The 1450 Series Medium Duty Closer is designed for frequent use and low abusive traffic areas, ideal for aluminum storefronts and interior offices.
The 1450 Series is a cast aluminum medium duty closer for frequent use and low abusive applications.
The 1450 Series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors.
- Cast Aluminum Body
- Patent Pending Design
- Peel-n-Stick Templates
- Universal Screw Pack
- Full Complement Bearing
- All Weather Fluid
- Adjustable Spring Size 1-6
- Non-Handed
- 25 Year Warranty
Attributes
Manufacturer surcharge: 7.0%
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Double Lever Arm, Soffit Stop
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Slim Plastic
Degree Swing: 110 Deg.
Door Size: Ext to 48″, Int to 60″
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Qty: 1
Screw Type: Machine and Self-Tapping
Series: 1450 Series Surface Mounted Closers
Ship Weight: 9 lbs.
Stop: Dead Stop
Subtype: Surface Closers
Through Bolts: Yes
Type: Surface
Ul Listing: 10C
Unit of Measure: Each
Resources
- 1000 Series Catalog
- 1450 Series Cut Sheet
- 1450 Series Surface Mounted Closers Cut Sheet
- LCN 1000 Series Surface Mounted Closers Guide
- LCN 1250, 1450 & 4050 Flush Panel Adapter Bracket Installation Guide
- LCN 1450 & 1450DA Pull/Jamb/PA Mount Installation Guide
- LCN 1450 Drop Plate Installation Guide
- LCN 1450 Series Data Sheet
- LCN 1450/1450DA CUSH/SCUSH Installation Guide
- LCN 1450/1450DA Installation Guide
- LCN 1450T Catalog
- LCN Closers & Auto Operators Installation Guide
- Von Duprin Finishes Chart
