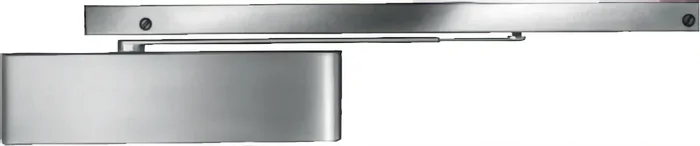

Super Smoothee Heavy Duty Adjustable Track Door Closer by LCN

Description

LCN 4040XPT-STD-AL Super Smoothee Heavy Duty Adjustable Surface Mounted Door Closer, Aluminum Finish

LCN 4040XPTSTDAL Super Smoothee Heavy Duty Adjustable 1-4 Surface Mounted Regular Track Door Closer with TBSRT Thru Bolts offers exceptional performance and reliability in high-traffic environments. Designed for use in schools, hospitals, government buildings, and correctional facilities, this door closer ensures smooth operation during critical moments, providing peace of mind for facility managers. Constructed with a forged steel main arm and a double heat-treated steel pinion, the LCN 4040XPT is built to last. It features all-weather fluid for dependable performance in varying temperatures and is UL and cUL listed for safety assurance. The adjustable spring size accommodates door weights and conditions, allowing for customization between sizes 1-4.Measuring 12-1/4″ x 3-1/2″ x 2-1/4″ for the body and 22-3/4″ x 1-1/4″ x 1-1/4″ for the track, this model is designed for track mounting with a 1″ diagonal mounting hole pattern. The aluminum finish not only adds an aesthetic appeal but also ensures durability. Backed by a limited 30-year warranty, the LCN 4040XPT is an excellent choice for those seeking a reliable, long-lasting door closer solution.

Super Smoothee Heavy Duty Adjustable 1-4 Surface Mounted Regular Track Door Closer with TBSRT Thru Bolts 689 Aluminum Finish

LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.

• 44 percent increased bearing load capacity
• Strongest pinion ever- at 3/4″ journal diameter
• Widest bearing ever- at 5/8″
• Stronger pinion teeth
• New V-shield™ seal with 20 percent longer life
• XP = eXtra Protection in real world applications
• Cast Iron Forged Steel Arm
• Double Heat Treated Steel Pinion
• All Weather Fluid
• Non-Handed
• LCN® Fast™ Power Adjust
• Fast & Accurate Installation
• UL & cUL Listed
• Tested and certified under ANSI Standard A156.4, grade one
• UL and cUL Listed
• Peel and Stick Templates
• Forged Steel Main Arm

Attributes

Alternate Codes: 142512, 4040XPT-STD-AL, 4040XPTAL, 4040XPTSTDAL, 4041TAL, LCN4040XPTAL, LCN4041TAL

Arm Function: Non-Hold Open, Standard Arm w/Track

Arm Type: Slide Track Arm Standard

Baa Qualified: Yes

Back Check: Adjustable

Body Type: Cast Iron

Category: Door Closers and Accessories

Certifications: A156.4, ANSI, Buy American Act, UL 10C

Closer Size: Non-Sized

Closer Type: Mechanical

Cold Weather Fluid: Yes

Country of Origin: Usa

Cover: Plastic Cover

Degree Swing: 120¼

Delay: No

Dimension: 12-1/4″ x 3-1/2″ x 2-1/4″ Body, 22-3/4″ x 1-1/4″ x 1-1/4″ Track

Door Application: Door Closers, Surface Mount Closers

Fasteners: TB Self Reaming & Tapping Screws

Finish: Aluminum

Finish Code: 689 (AL)

Finish Color: Satin Aluminum

Finish : Aluminum Painted

Fire Rated: 3 Hours {A}

Grade: Grade 1

Hand: Non-Handed

Handing: Non-Handed

Hazardous Material: NO

Hold Open: No

Limited Warranty: 30 Years

Manufacturer: LCN Closers

Manufacturer Warranty: Limited 30 Year Warranty

Material: Cast Iron

Maximum Opening: 120°

Mounting: Hinge Side, Top Jamb

Mounting Group: Hydraulic

Mounting Hole Pattern: 1″ Diagonal Mounting with 2-1/4″ Spacing

Mounting Location: Push or Pull Side

Mounting Style: Slide Track

No Of Inners: 1

Options: All Weather Fluid, Machine Screws, Thru-Bolts, Wood Screws

Order_ Qty: 1

Restrictions: None

Screw Type: Self Tapping

Series: 4040XPT Series

Special Rust Inhibitor: No

Spring Size: Adjustable 1-4 Size

Spring Tension: Adjustable 1 – 4

Subcategory: Track Closers

Subtype: Door Closer

Through Bolts: No

Track Size: 22-3/4″ x 1-1/16″

Type: Surface

Ul Listing Type: UL 10C Rated
