Description

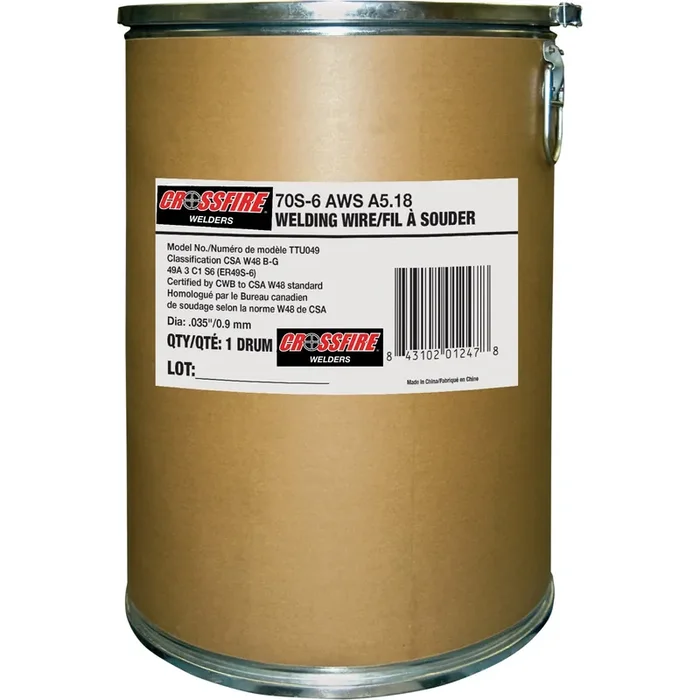

ER70S-6 COPPER COATED MIG WIRE – DRUM
ISO 14341 -A- : 3SI1, DIN 8558 SG2, AWS A5.18 ER70S-6
Please contact for shipping options.
Super MIG 70 is a premium welding wire containing higher levels of manganese and silicon then other standard grades of MIG wire. These features enable the wire to have excellent wetting ability with high weld deposits and excellent tolerance to rust and scale.
Drums: *250kg, *Please contact for skid lot pricing.
Dia. Available: .023, .030, .035, .040, .045
For Drum packaging, wire pay-off hoods available.
APPROVALS
- AWS 5.18, ASME SFA 5.18
- CWB-CSA W48-06
- ISO-9002
- ABS Quality Evaluations
- Lloyds Register
- TUV & DB
| Typical Chemical Analysis | |||||
| C | Mn | Si | P | S | Cu |
| 0.07-0.15 | 1.40-1.85 | 0.80-1.15 | 0.025 Max | 0.035 Max | 0.50 Max |
|
Chemical and Mechanical Properties in the Metal Deposited, in accordance with AWS |
||||||
|
AWS Classification |
Gas |
Yield Strength | Tensile Strength |
Elongation % Min. 2″ |
||
| PSI | MPA | PSI | MPA | |||
| ER70S-6 | CO2 | 68,000 | (470) | 81,000 | (561) | 29% |
| 75-25 | 72,000 | (500) | 86,000 | (590) | 27% |
